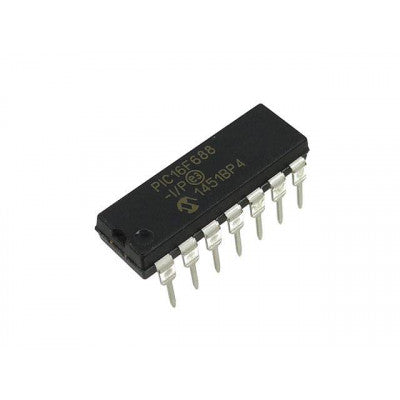

PIC16F688 8-Bit CMOS Microcontroller
14-Pin Flash-Based Microcontroller with nano Watt Technology
- Program Memory Type: Flash
- Program Memory Size (KB): 7
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 256
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 14
- Timers: 1 x 8-bit, 1 x 16-bit
Top Features:
- 17 I/O Pins with High Current Source/Sink
- Interrupt-on-Change Pin
- Ultra Low-power Wake-up (ULPWU)
- Analog Comparator Module with Two Comparators
The PIC16F688 is a versatile 8-bit CMOS microcontroller with advanced features. It includes an Analog Comparator Module with two analog comparators, a 10-bit A/D Converter with 12 channels, and a Timer/Counter with a programmable prescaler. The microcontroller operates in a wide temperature range from -40°C to 125°C and has a low operating voltage range of 2V to 5.5V.
The 14-pin microcontroller is ideal for applications requiring low power consumption and high performance. With its flash-based program memory of 7KB and SRAM of 256 bytes, it offers ample storage for program and data. The PIC16F688 also features digital communication peripherals including UART, SPI, and I2C for versatile connectivity options.
Whether you need precise analog measurements, efficient timer functions, or reliable digital communication, the PIC16F688 microcontroller is a reliable choice for your project.
For more detailed information, refer to the PIC16F688 IC Data Sheet.
* Images are for illustration only; actual product may vary.
