PIC16F677 20-Pin Flash-Based 8-Bit CMOS Microcontroller
High-performance microcontroller with a range of features for versatile applications.
- Program Memory Type: Flash
- Program Memory Size (KB): 3.5
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 125
- Temperature Range (°C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 20
- Timers: 1 x 8-bit, 1 x 16-bit
Features:
- 17 I/O Pins and 1 Input-only Pin
- High current source/sink for direct LED drive
- Interrupt-on-Change pin
- Individually programmable weak pull-ups
The PIC16F677 microcontroller boasts an Analog Comparator Module with two analog comparators, a programmable on-chip voltage reference module, and a 10-bit resolution ADC with 12 channels. It also features a Timer/Counter with a programmable prescaler for versatile timing applications.
For enhanced functionality, the microcontroller includes digital communication peripherals such as 1-SPI, 1-I2C, and 1-SSP (SPI/I2C), offering flexibility in interfacing with external devices.

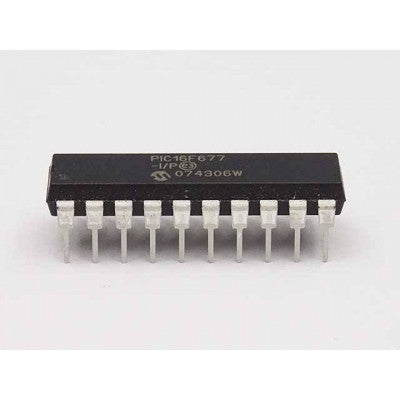

*Images are for illustration only; actual product may vary.*
