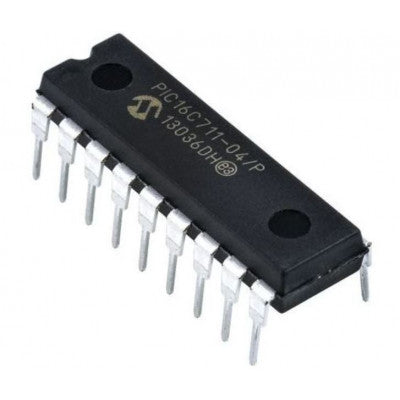

PIC16C711 8-Bit Microcontroller
Low-cost, high-performance CMOS microcontroller with integrated A/D converters
- Program Memory Type: OTP
- Program Memory Size (KB): 1.75
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 68
- Timers: 1 x 8-bit
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 2.5 to 5.5
- Pin Count: 18
- ADC Input: 4 ch, 8-bit
- Related Document: PIC16C711 IC Data Sheet
Top Features:
- High-performance RISC CPU
- 35 single word instructions to learn
- Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
- Up to 2K x 14 words of Program Memory
The PIC16C711 is a fully-static 8-bit microcontroller with integrated analog-to-digital converters in the mid-range family. It features a Harvard architecture with separate instruction and data buses, allowing for efficient execution of instructions. With a two-stage instruction pipeline, most instructions run in a single cycle, enhancing performance.
This microcontroller boasts a large register set, enabling a 2:1 code compression and a 4:1 speed improvement over other 8-bit microcontrollers in its class. The PIC16C711 devices offer different RAM capacities - 36 bytes for PIC16C711, 68 bytes for PIC16C711, and 128 bytes for PIC16C715, along with 13 I/O pins and a timer/counter.
Key features include interrupt capability, an eight-level deep hardware stack, power-on reset, code protection, low-power sleep mode, selectable oscillator options, and more. The PIC16C711 is designed for high performance, making it ideal for various embedded applications.
