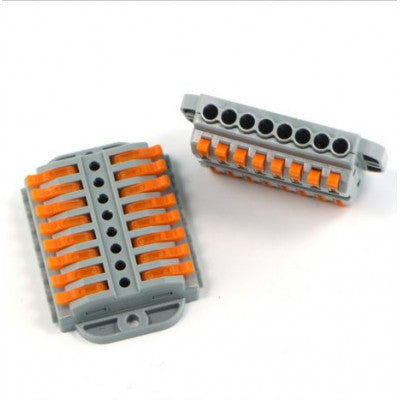

PCT-223-8 0.08-2.5mm2 8 Pole Wire Connector Terminal Block
A compact wire connector with spring lock lever for easy cable connection.
- Model: PCT-223-8
- Rated Voltage (V): 600
- Rated Current (A): 32
- Body Material: Modified Nylon (PA66)
- Contact Material: Stainless Steel
- No. of Contact Points: 8
- Allowed Wire Size (AWG): 28 ~ 12
- Color: Grey+Orange
- Operating Temperature Range (C): -20 to 80
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
The PCT Spring Lever Connector package includes a compact locking wire connector with a spring lever. It is suitable for single-strand hardwire with an area of 0.08mm to 4mm2 or soft wire with an area of 0.08mm to 4.0mm2 (or AWG28 to AWG12). This connector can handle a rated voltage of up to 600V with an electric current peak of 32A.
This connector is a 4-conductor terminal block with operating levers and has a maximum continuous service temperature of 85C.
Package Includes:
- 1 x PCT-223-8 Stationary Type Quick Connection Terminal
Images are for illustration only; actual product may vary.
