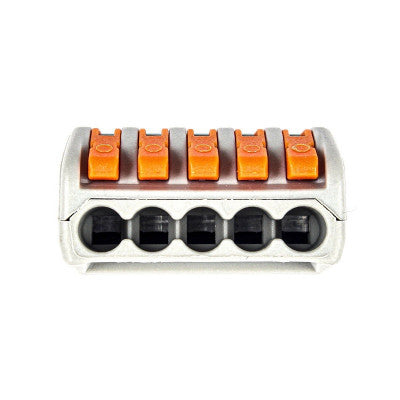

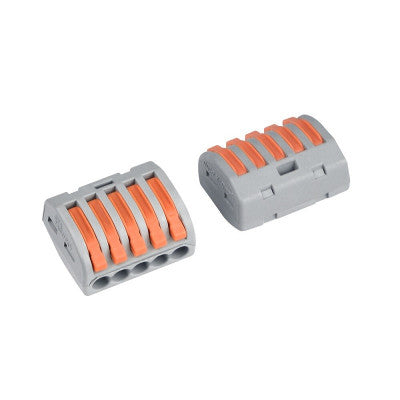

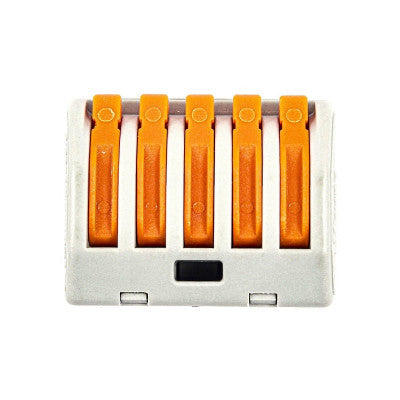

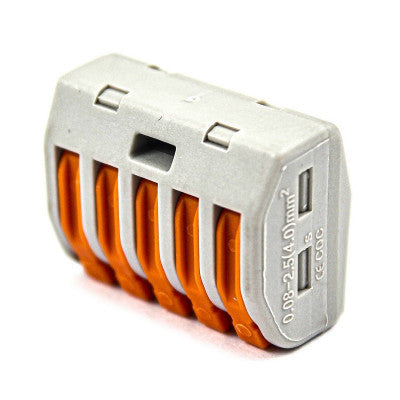

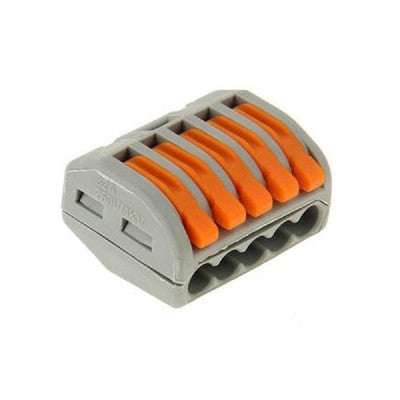

PCT-215 0.08-2.5mm 5 Pole Wire Connector Terminal Block
Compact locking wire connector with spring lever for cable connection.
- Model: PCT-215
- Rated Voltage (V): 250V/4KV
- Rated Current (A): 32
- Body Material: Modified Nylon (PA66)
- Contact Material: Stainless Steel
- No. of Contact Points: 5
- Rated Power (W): 7 KW
- Allowed Wire Size (AWG): 28 ~ 12
- Color: Grey+Orange
- Operating Temperature Range (C): -20 to 85

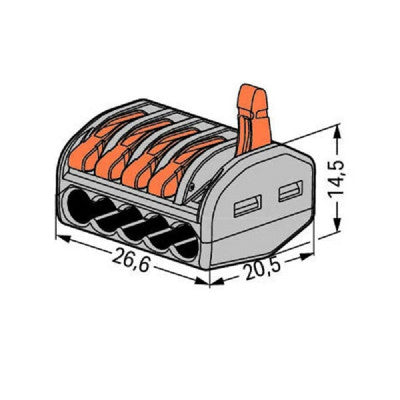

- Length (mm): 27
- Width (mm): 21
- Weight (gm): 6
- Shipment Weight: 0.015 kg
- Shipment Dimensions: 4 x 4 x 1 cm
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance

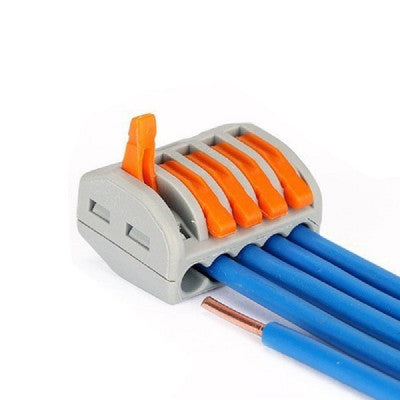

The PCT Spring Lever Connector [212, 213, 215, 215, 218] package includes a compact locking wire connector with a spring lever. It is suitable for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can handle a rated voltage of up to 400V with an electric current peak of 32A, resulting in a maximum power of 7KW.
This connector is a 4-conductor terminal block with operating levers and a maximum continuous service temperature of 85°C.
* Images are for illustration only; actual product may vary.
