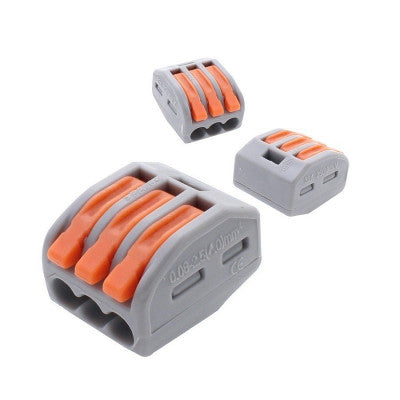

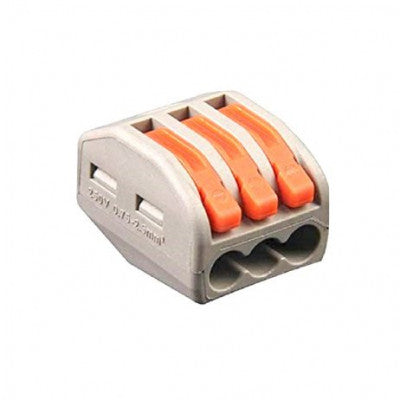

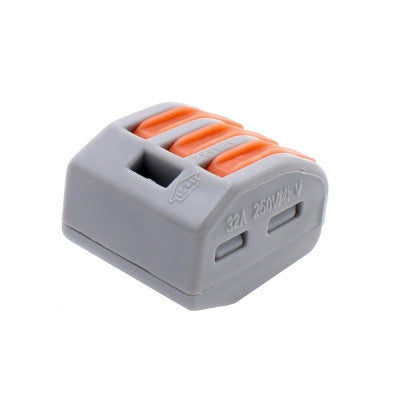

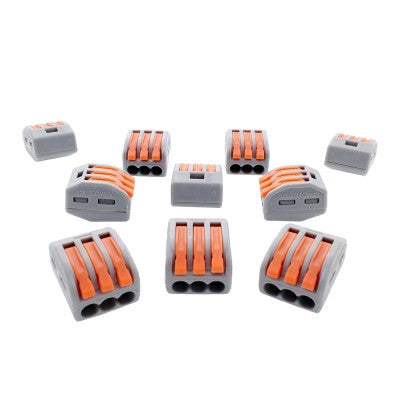

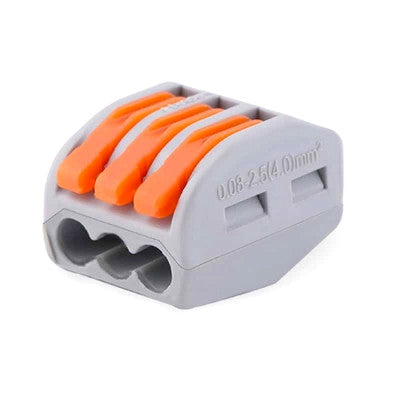

PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block

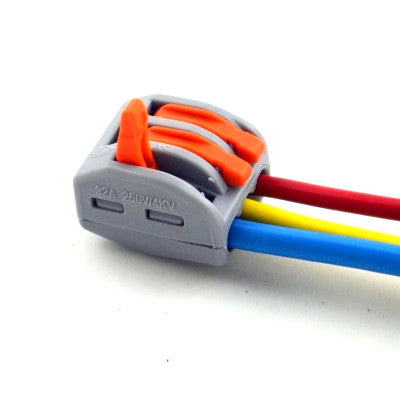

Compact wire connector with spring lock lever for cable connection.
- Model: PCT-213
- Rated Voltage (V): 250V/4KV
- Rated Current (A): 32
- Body Material: Modified Nylon (PA66)
- Contact Material: Stainless Steel
- No. of Contact Points: 3
- Rated Power (W): 7 KW
- Allowed Wire Size (AWG): 28 ~ 12
- Color: Grey+Orange
- Operating Temperature Range (C): -20 to 85

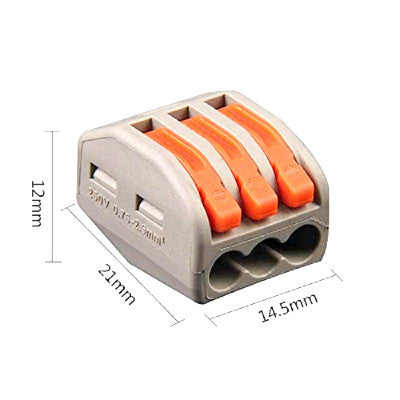

- Length (mm): 17.5
- Width (mm): 21
- Weight (gm): 6
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 4 x 4 x 1 cm
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
PCT Spring Lever Connector PCT-212, 213, 215, 215, 218 and CH-812, 813, 2-4, 2-6, etc. comes with compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, resulting in a maximum of 7KW Power.
Compact splicing connector with 4-conductor terminal block and operating levers. Max. continuous service temperature of 85C.
