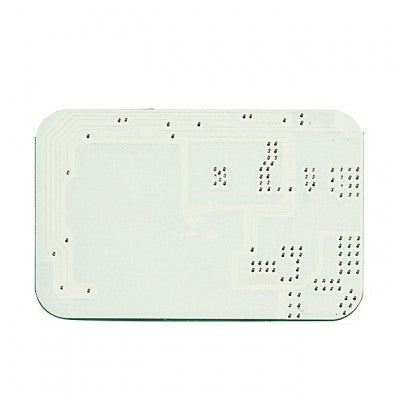

PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board
A 6 string 22V circuit power tool for solar lighting, designed for 3.7V 18650 lithium batteries.
- Model: 6 string 22V lithium battery protection board
- Maximum operating current: Within 15A
- Charging current: Within 15A
- Balanced charge: None
- Short circuit protection: Yes
- Applicable assembly: Nominal 3.7V Batteries / 6 strings
Top Features:
- 6 string 22V circuit
- Designed for 3.7V 18650 batteries
- Protection from overcharge and over-discharge
- Short circuit protection
The PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board is mainly used for solar lighting with dedicated 18650 battery packs. It is designed to protect 3.7V 18650 lithium batteries from overcharge and over-discharge. The battery protection board ensures the safety and longevity of the integrated circuit board.
As a rechargeable lithium battery, it is essential to have protection due to its characteristics. The lithium battery cannot withstand overcharge, over-discharge, overcurrent, short circuit, or ultra-high temperature charge and discharge. Therefore, the lithium battery protection board includes a sampling resistor and a current fuse to safeguard the battery.
Package Includes:
- 1 x PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board
Specifications:
- Battery: 6 Cell
- Overcharge detection voltage (V): 4.25±0.025
- Over-discharge detection voltage (V): 2.50±0.08
- Over current Protection (A): 50
- Working current (A): 14
- Operating Temperature (°C): -40 ~ +85
- Length (mm): 50
- Width (mm): 32
- Height (mm): 4
- Weight (gm): 6
Images are for illustration only; actual product may vary.
