Longding Micro Class D Amplifier Chip Power Amplifier Circuit Board
A high-efficiency amplifier with US-imported Longding micro Class D chip
- Work: D Class
- Quiescent Current: 20mA
- Efficiency: 97%
- Rated Output Power: 10W + 10W (8?)
- Frequency Response: 20Hz to 50KHz
- Operating Voltage: DC 7.5-15V
- Recommended Supply Voltage: 12V (center PIN of 12VDC is +)
- PCB Board Size: 40x40x20mm
Top Features:
- Ultra-high efficiency design
- 10W + 10W power output with 12V supply
- Overheating and over-current protection
The power amplifier circuit board is meticulously designed using the official standard, featuring the Longding micro Class D amplifier chip imported from the US. This chip ensures high-quality audio output, making it a must-have for music enthusiasts. The amplifier boasts ultra-high efficiency and a large power capacity, capable of delivering 10W + 10W power output with a 12V power supply. Despite its compact size, the chip includes overheating and over-current protection functions, enhancing its overall durability and safety.

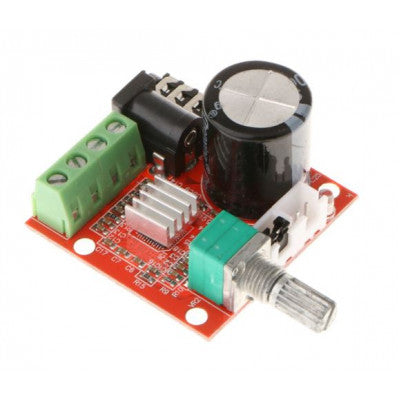

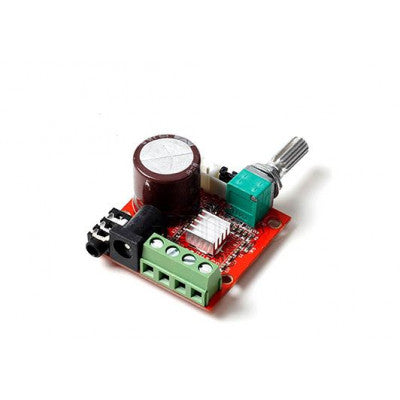

The package includes 1 X PAM8610 Stereo Audio Amplifier Board with Switch Potentiometer.
Images are for illustration only; actual product may vary.
