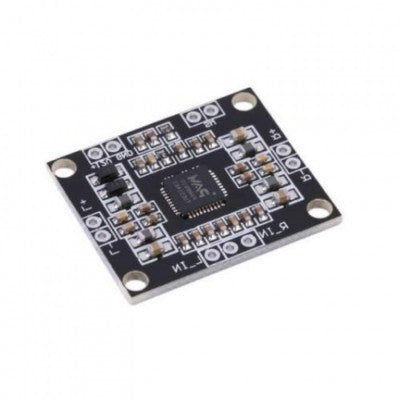

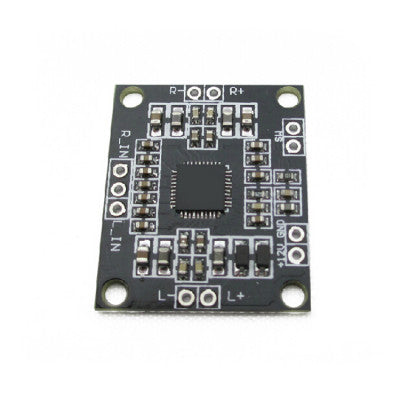

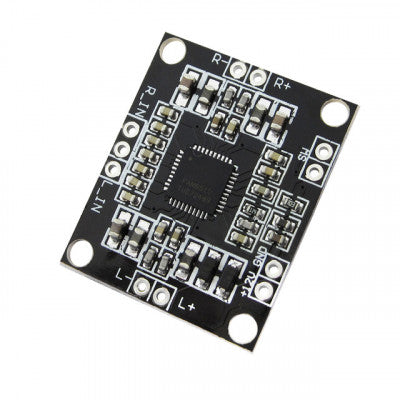

PAM8610 15W Stereo Class-D Audio Amplifier
A high-quality audio amplifier with DC Volume Control and low THD+N
- Model: PAM 8610
- Input Voltage (V): 7 ~ 15
- Working Mode: Class D (PWM modulation type)
- Power (W): 15

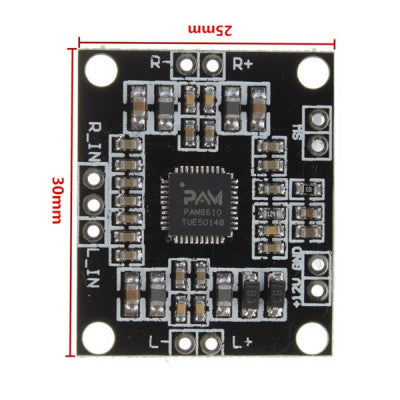

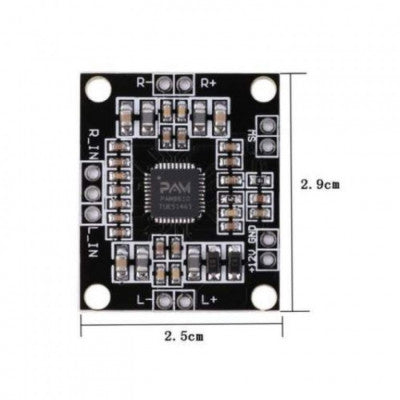

- Length (mm): 30.5
- Width (mm): 25.5
- Height (mm): 2.6
- Weight (gm): 5
Top Features:
- 15W per channel stereo output
- Low THD+N (0.1%) for high-quality sound
- 32 steps DC volume control (+32dB to -75dB)
- Efficient operation on 7V to 15V supply
The PAM8610 is a 15W stereo Class-D audio amplifier with DC Volume Control, offering low THD+N (0.1%) and high-quality sound reproduction. It features a 32 steps DC volume control with a range of +32dB to -75dB. The amplifier runs efficiently on a 7V to 15V supply, outperforming competitors in efficiency.
With minimal external components required, the PAM8610 saves costs and board space. This Two-Channel Stereo Class-D Amplifier comes in a compact 40 pin QFN 6 x 6 mm package. It is recommended to use a 12V, 3A power supply for optimal performance, with a voltage limit of 16.5V.

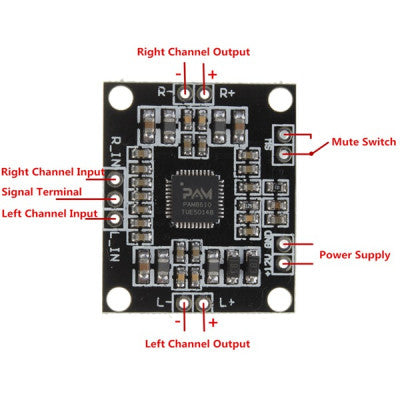

When using the PAM8610, ensure not to short-circuit the audio output or ground. Verify correct wiring before powering up the amplifier to prevent any damage.
Package Includes:
- 1 x PAM 8610 Digital Stereo Class-D Amplifier Module
*Images are for illustration only; actual product may vary.
