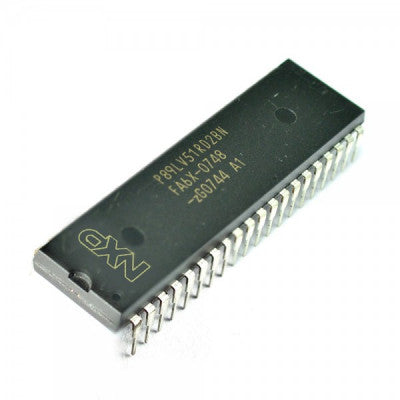

P89V51RD2 80C51 Microcontroller
An 80C51 microcontroller with X2 mode option for increased throughput.
- Flash Memory: 64 kB
- Data RAM: 1024 bytes
- Operating Voltage: 5 V
- Speed: 0 to 40 MHz
- ISP: Yes
- IAP: Yes
Top Features:
- 80C51 CPU
- 64 kB Flash memory
- X2 mode option
- ISP and IAP support
The P89V51RD2 by NXP (Phillips) is an 80C51 microcontroller with 64 kB Flash and 1024 bytes of data RAM. It features an X2 mode option that allows for increased throughput by choosing a faster clock rate. The Flash memory supports both parallel programming and in-system programming. With its ISP capability, the device can be reprogrammed in the end product under software control. Additionally, the P89V51RD2 is In-Application Programmable, enabling reconfiguration of the Flash memory even while the application is running.
Some key features of the P89V51RD2 include an 80C51 CPU, support for 12-clock or 6-clock mode selection, SPI, enhanced UART, PCA with PWM functions, and four priority levels for interrupt sources.
*Images are for illustration only; actual product may vary.*
