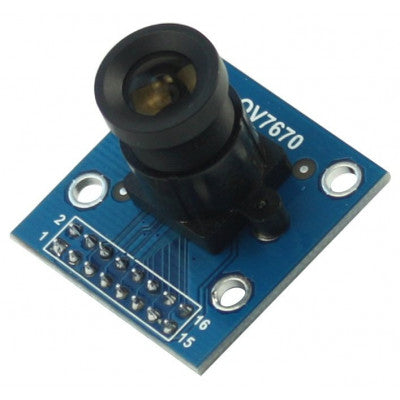

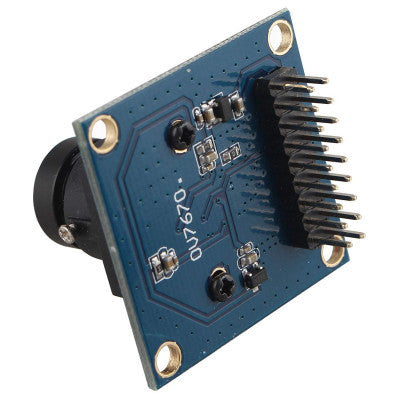

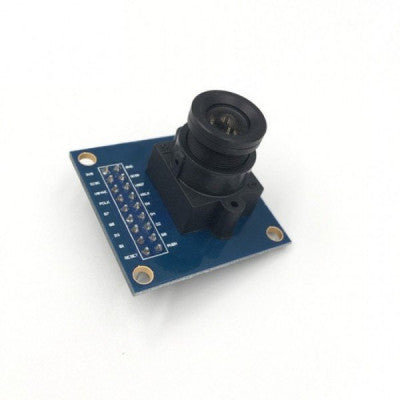

OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE
A low-cost image sensor with DSP, operating at 30 fps and 640 x 480 resolutions.
- Pixel Coverage: 3.6um x 3.6um
- Duck Current: 12 mV/s at 6C
- Support: VGA, CIF, and from CIF to 40 x 30 format
- Auto Image Control: AEC, AGC, AWB, ABF, ABLC
- Image Quality Control: Color saturation, hue, gamma, sharpness, anti-blooming
- ISP: Noise reduction, defect correction
- Support image scaling
- Lens shading correction
Top Features:
- Low-light sensitivity
- Embedded portable apps support
- Standard SCCB interface
- High sensitivity for low light applications
The OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE is a powerful camera module with OmniPixel technology, suitable for various applications in Robotics, Image Processing, Object Detection, and more. It operates at 3.3V DC input voltage with a working temperature range of 0-50 degrees Celsius. The lens, including the seat, is made of Magnesium Alloy material with a focal length of 3.6 mm.
The module features a 210 0.1 output connector for easy insertion into Prototype Boards, Bread Boards, and MCUs. With a quality Heavy Gold Plate on a Black FR-4 PCB, it effectively prevents light leak issues and shadows in images.
Easy-to-interface with 8/16/32 bit Micro-controllers, this camera module provides vision to small embedded systems and facilitates fast project implementation. The package includes 1 x OV7670 640X480 VGA CMOS Camera Image Sensor Module and 1 x Lens Cover.
Specifications:
- Lens Viewing Angle (FOV): 25
- Operating Temperature Range (C): -30 to 70
- Operating Voltage (VDC): 2.5 ~ 3.0
- Pixel Resolution: 640 X 480
- S/N Ratio (dB): 46
- Video Output: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
- Dimensions (LxWxH) in mm: 35 x 35 x 30
- Weight (gm): 13
*Images are for illustration only; actual product may vary.
