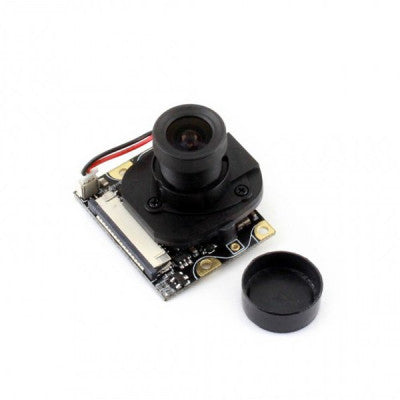

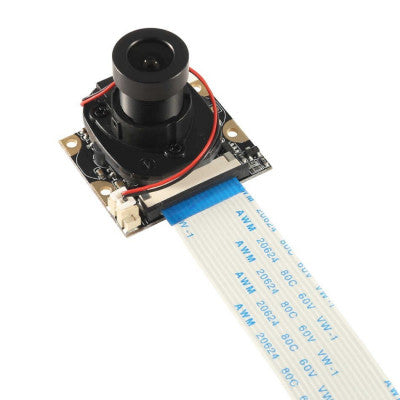

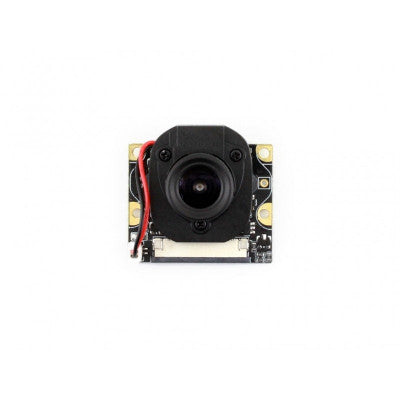

OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3 and 4 with Manual Day Night Mode Switching
Custom-designed camera add-on for Raspberry Pi with night vision support
- Model: OV5647 5MP 1080P IR-Cut Camera
- Resolution: 1080p
- Sensor: OV5647
- Camera: 5MP
- CCD Size: 1/4inch
- Aperture (F): 1.8

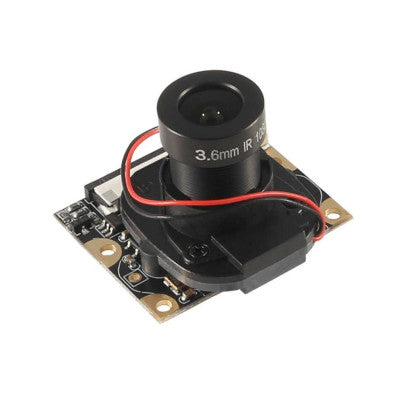

- Focal Length: 3.6mm adjustable
- Output Power for IR LED: 3.3~5v
- Diagonal angle: 60 degree

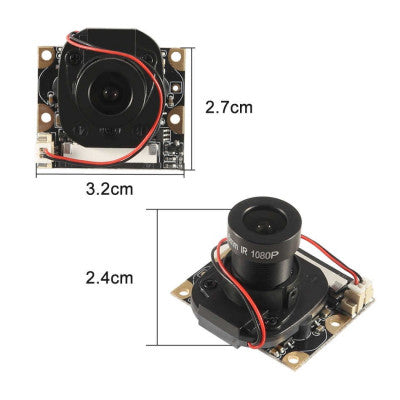

- Dimensions (LxWxH) mm: 32.12 x 30 x 25.5
- Weight (gm): 11
- Ribbon cable Length: 14 cm
Top Features:
- Raspberry Pi Camera, supports all Pi revisions
- IR-CUT filter eliminates color distortion in daylight
- 5MP OV5647 sensor for high-quality images

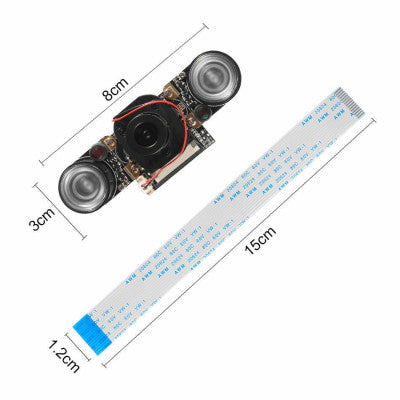

- Supports attaching IR LEDs for night vision
The OV5647 5MP 1080P IR-Cut Camera is a custom-designed add-on for Raspberry Pi, utilizing the dedicated CSI interface for seamless integration. It supports night vision and is compatible with all Pi revisions. The camera features a 5-megapixel OV5647 sensor with a best resolution of 1080p.

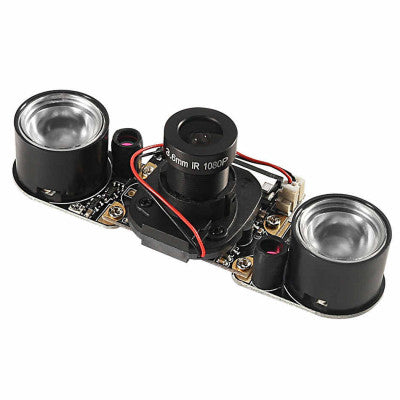

Equipped with an externally attachable IR LED for enhanced night vision functionality, this camera also provides mounting holes for connecting infrared LED and fill flash LED. An adjustable resistor allows control over the ambient light threshold for toggling the infrared LED.

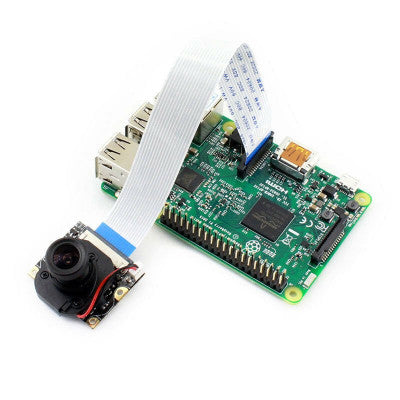

With onboard screw holes for attachment and power supply, this camera connects to the Raspberry Pi via a short ribbon cable. The sensor boasts a native resolution of 5 megapixels and a fixed focus lens, supporting various still image and video resolutions.
Supported in the latest version of Raspbian, the OV5647 camera is a versatile choice for Raspberry Pi enthusiasts.
Package Includes:
- 1 x OV5647 5MP 1080P IR-Cut Camera
- 1 x 15-pin FFC Ribbon cable Strip (opposite sides contact)
* Images are for illustration only; actual product may vary.
