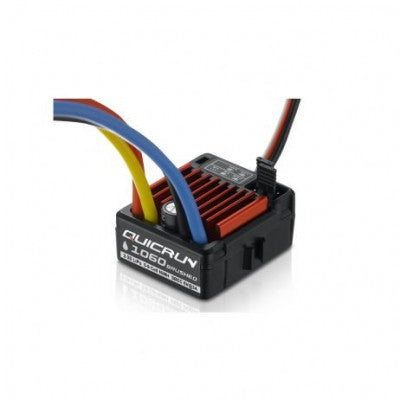

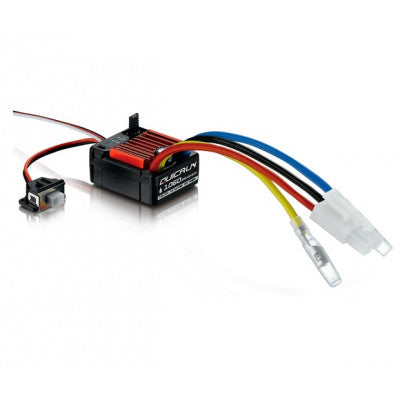

HobbyWing QuicRun 1/10 Waterproof Brushed 60A Electronic Speed Controller ESC 1625
Waterproof and dust-proof ESC for various 1/10 scale vehicles
- Fwd. Cont. / Peak Current: 60A / 360A
- Rev. Cont. / Peak Current: 30A / 180A
- Cars Applicable: 1/10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler, and Tank
- Motor Limit: *WP-860-DUAL-BRUSHED has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turns of the motors need to be increased. 2S Lipo or 6 NiMH 540 or 550 Size Motor: 12T Or RPM<30000 @7.2V 3S Lipo or 9 NiMH 540 or 550 Size Motor: 18T Or RPM< 20000 @7.2V 4S Lipo or 12 NiMH Not Available
- Cooling Fan: Without cooling fan
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Top Features:
- Water-proof and dust-proof design
- Small size with built-in capacitor module
- Great current endurance capability
- Automatic throttle range calibration
The HobbyWing QuicRun 1/10 Waterproof Brushed 60A ESC 1625 is a versatile electronic speed controller suitable for all-weather condition races. It is designed for various 1/10 scale vehicles including Touring Cars, Buggies, Short Course Trucks, Monsters, Truggies, Rock Crawlers, and Tanks. The ESC features Fwd/Rev/Br running modes to fit different vehicle types and has a great built-in BEC output capacity.

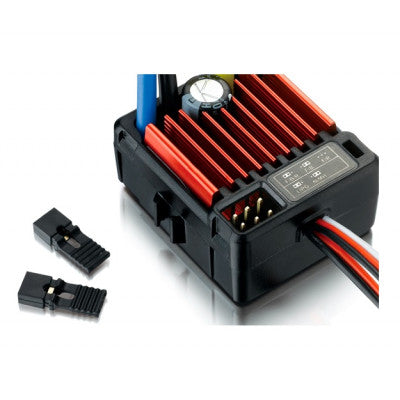

With multiple protections like low voltage cut-off protection, over-heat protection, and throttle signal loss protection, this ESC ensures the safety and longevity of your battery and motor. Setting ESC parameters is easy with the included jumpers, and the ESC also offers automatic throttle range calibration for user convenience.
The package includes 1 x Original HobbyWing QuicRun 1625 Brushed Electronic Speed Controller.
- Model: Wp-1625-BRUSHED
- Input Voltage Range: 2-3S Lipo or 5-9 NiMH
- Resistance (?): Fwd 0.001, Rev 0.002
- BEC: 3A/5V (Linear Mode)
- PWM Frequency: 1KHz
- Forward Cont Peak Current: 60A / 360A
- Reverse Cont Peak Current: 30A / 180A
*Images are for illustration only; actual product may vary.
