Original Arduino Uno WiFi
Add WiFi connectivity to your devices with the enhanced Arduino Uno WiFi board.
- Microcontroller: ATMEGA4809
- Digital I/O Pins: 14 (6 Provide PWM Output)
- Analog Input Pins: 6
- DC Current per I/O Pin: 20mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 48KB (ATMEGA4809)
- SRAM: 6,144KB (ATMEGA4809)
- EEPROM: 256 Bytes (ATMEGA4809)
- Clock Speed: 16MHz
- Dimensions: 68.6mm x 53.4mm
- Weight: 25g
Features:
- ATMEGA4809 Microcontroller
- 14 Digital I/O Pins (6 PWM)
- 6 Analog Input Pins
- 48KB Flash Memory

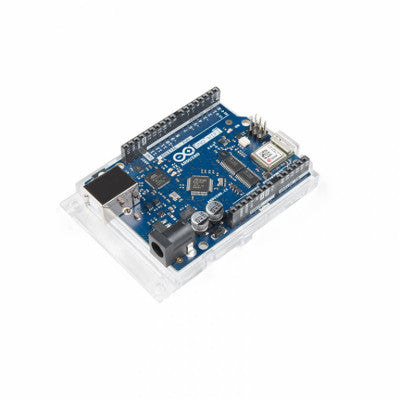

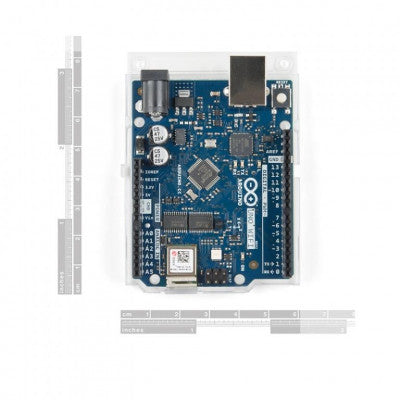

The Original Arduino Uno WiFi is essentially an Arduino Uno Rev3 with added WiFi capability. It features a new 8-bit microprocessor from Microchip and an onboard IMU for enhanced functionality. The WiFi connection is secured with the ECC608 crypto chip accelerator, ensuring safe network connections.
This board offers 14 digital I/O pins, 6 analog inputs, a USB connection, power jack, ICSP header, and a reset button. It is equipped with everything necessary to support the microcontroller, making it easy to connect to a computer via USB or power it using an AC adapter or battery.

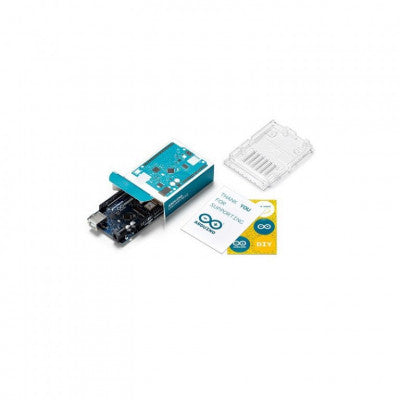

Package Includes:
- 1 x Arduino UNO WiFi REV2 Board
Additional Information:
- Microcontroller: ATMEGA4809
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Digital I/O Pins: 14 (6 Provides PWM Output)
- Analog Input Pins: 6
- DC Current per I/O Pin: 20mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 48KB (ATMEGA4809)
- SRAM: 6,144KB (ATMEGA4809)
- EEPROM: 256 Bytes (ATMEGA4809)
- Clock Speed: 16MHz
Images are for illustration only; actual product may vary.
