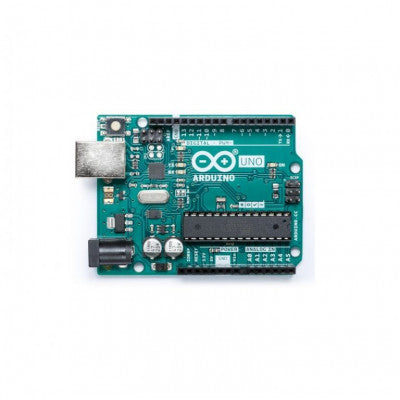

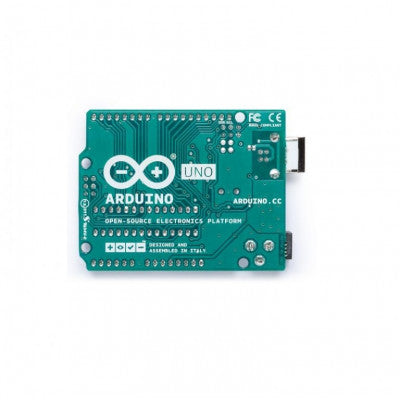

Original Arduino Uno Rev3
An original microcontroller board with 14 digital I/O pins and 6 analog inputs.
- Model Type: Arduino Uno R3
- Microcontroller Chip: ATmega328P
- Operating Voltage (VDC): 5
- Input Voltage (Recommended): 7-12V
- Analog I/O Pins: 6
- Digital I/O Pins: 14 (6 PWM output)
- PWM Digital I/O Pins: 6
- Clock Speed: 16 MHz
- Flash Memory: 32 KB
- SRAM (KB): 2
- EEPROM: 1 KB (ATmega328P)
- DC Current for 3.3V Pin (mA): 50
- DC Current per I/O Pin (mA): 20
- On Board LEDs: Yes
- Operating Temperature (C): -10 to 60
- Weight (gm): 25
- Length (mm): 68.6
- Width (mm): 53.4
- Height (mm): 12.5
Top Features:
- 14 digital I/O pins
- 6 analog inputs
- USB connection
- 16 MHz clock speed
This Arduino Uno is the reference model for the Arduino platform, featuring 14 digital input/output pins, 6 analog inputs, and a 16 MHz clock speed. It is the perfect board for beginners and advanced users alike, allowing for easy tinkering and experimentation.
The Uno board is named after the Italian word for "one" and signifies the release of Arduino Software (IDE) 1.0. It is the original USB Arduino board and continues to be a popular choice among Arduino enthusiasts.

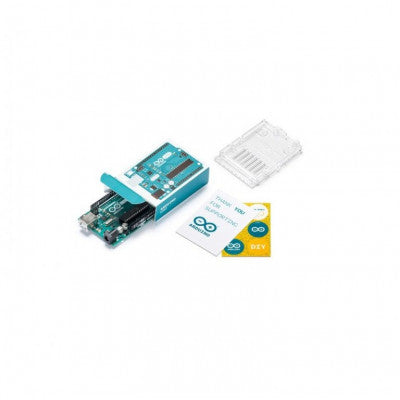

Package Includes: 1 x Original Arduino Uno Rev3
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
