Original Arduino Nano Every
The Nano Every: a powerful, compact Arduino board with enhanced features.
- Model Type: Arduino Nano Every
- Color: Blue
- Operating Voltage (VDC): 5
- Input Voltage (limit): 21V
- Analog I/O Pins: 8
- PWM Output Pins: 5 (D3, D5, D6, D9, D10)
- Ports: UART: 1, SPI: 1, I2C: 1
- LED_BUILTIN: 13
- Architecture: AVR
- Clock Speed: 20 MHz
- DC Current per I/O Pin (mA): 20
- Flash Memory: 48 KB
- EEPROM: 256byte (ATMega4809)
- SRAM (KB): 6
- Weight (gm): 5
- Length (mm): 45
- Width (mm): 18
- Height (mm): 6
Key Features:
- Smallest form factor: 45x18mm
- More powerful processor than Arduino Uno
- 50% more program memory
- 200% bigger RAM

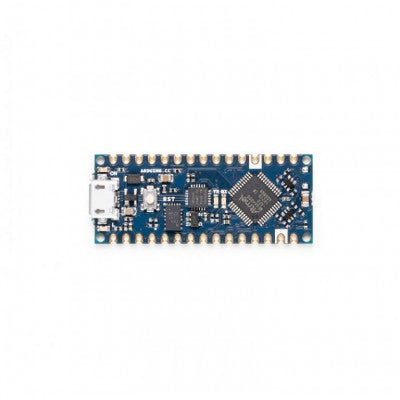

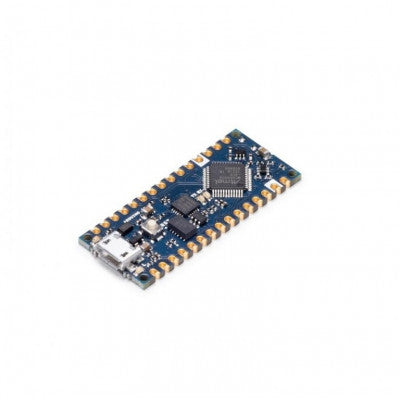

The Arduino Nano Every is an evolution of the traditional Arduino Nano board, featuring a more powerful ATMega4089 processor. This allows for larger programs and more variables compared to the Arduino Uno. If you've used the Arduino Nano in your projects before, the Nano Every is a pin-equivalent substitute, ensuring compatibility without the need for rewiring. The main differences include a better processor and a micro-USB connector.

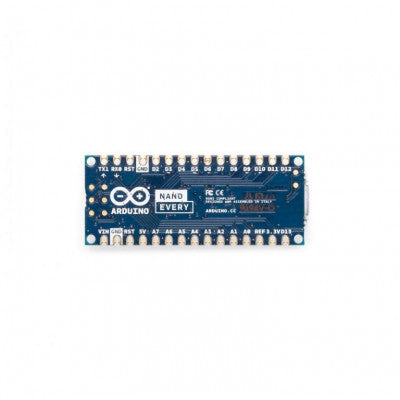

The Nano Every board is available in two options: with or without headers, providing flexibility for embedding in various inventions, including wearables. With tessellated connectors and no components on the B-side, you can directly solder the board onto your own design, reducing the overall prototype height.
Images are for illustration only; actual product may vary.
