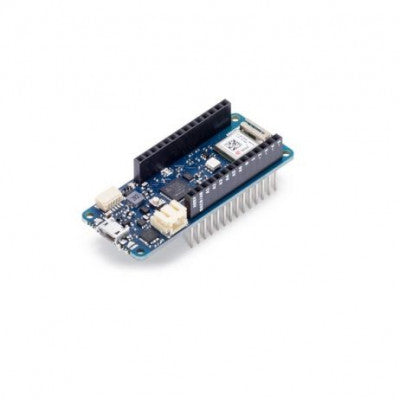

Arduino MKR WiFi 1010
The ultimate solution for basic IoT and pico-network application design.
- Microcontroller: SAMD21 Cortex-M0+ 32bit low power ARM MCU
- Radio module: u-blox NINA-W102
- Board Power Supply: 5V (USB/VIN)
- Secure Element: ATECC508
- Supported Battery: Li-Po Single Cell, 3.7V, 1024mAh Minimum
- Circuit Operating Voltage: 3.3V
- Digital I/O Pins: 8
- PWM Pins: 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
- Interface: 1 x UART, 1 x SPI, 1 x I2C
- Analog Input Pins: 7 (ADC 8/10/12 bit)
- Analog Output Pins: 1 (DAC 10 bit)
- External Interrupts: 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
- DC Current per I/O Pin: 7 mA
- Memory: CPU Flash Memory 256 KB (internal), SRAM 32 KB, EEPROM no
- Clock Speed: 32.768 kHz (RTC), 48 MHz
- LED_BUILTIN: 6
- Length (mm): 61.5 mm
- Width (mm): 25 mm
- Weight (gm): 32
Top Features:
- ESP32 module for simplified prototyping
- Low power consumption
- Full-speed USB device and embedded host
- Pre-mounted headers with pin-out
The Arduino MKR WiFi 1010 is the perfect board for creating IoT projects with minimal networking experience. It features a SAMD21 Cortex-M0+ 32-bit low-power ARM MCU and a u-blox NINA-W102 radio module. This board is designed to accelerate the development of WiFi-based IoT applications.
With 8 digital I/O pins, 13 PWM pins, and various interfaces, the MKR WiFi 1010 offers flexibility and ease of use. It also includes a secure element, support for Li-Po batteries, and multiple analog input and output pins.
Get started with IoT and pico-network applications effortlessly with the Arduino MKR WiFi 1010.
