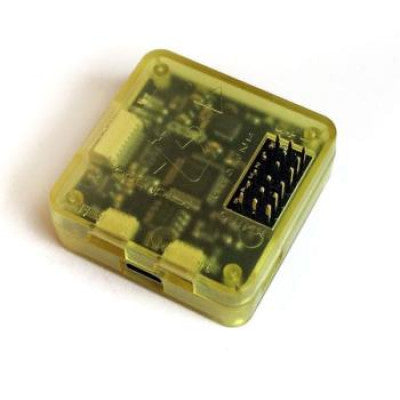

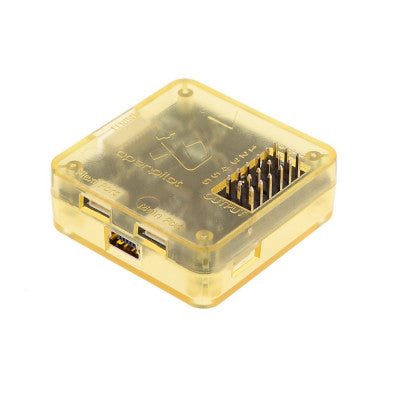

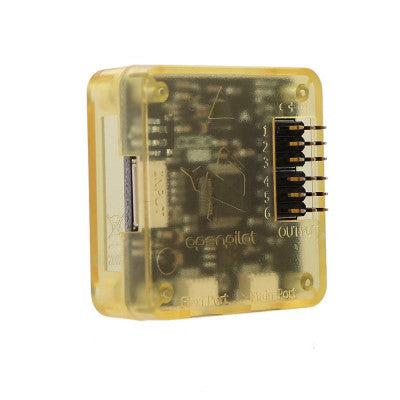

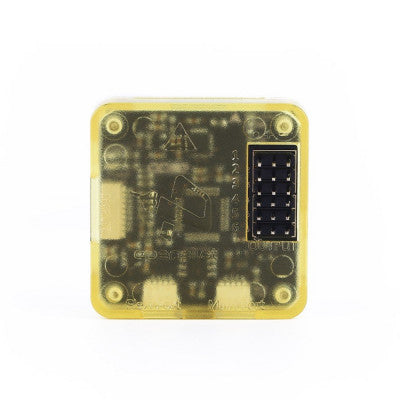

OpenPilot CC3D EVO Flight Controller Straight Pin
Directly compatible with satellite receivers, supports S.BUS, and features a powerful 32-bit STM32 processor.
- Model: OpenPilot CC3D EVO Straight Pin
- Input Voltage (V): 5 VDC
- Sensors: 3-Axis Gyrometer, Accelerometer, High-performance Barometer
- Processor: Micro-Controller STM32, Sensor IC: MPU6000
- Micro-SD Card Slot: No
- Dimensions (mm) LxWxH: 40 x 40 x 18
- Weight (gm): 22
Top Features:
- Directly plugs into satellite receiver
- Powerful 32-bit STM32 processor
- 3-axis MEMs gyros and accelerometer
- Compact 36 x 36 mm 4 layer PCB
This OpenPilot CC3D EVO Flight Controller Straight Pin card is designed for easy compatibility with satellite receivers, eliminating the need for additional cables. It supports S.BUS and is equipped with a powerful 32-bit STM32 processor with 128kb Flash and 20kb RAM. The 3-axis MEMs technology is utilized for both gyro and accelerometer functions.
The card is user-friendly and can be easily programmed using USB and OpenPilot software on Windows, Mac, or Linux without the need for any drivers. The OpenPilot software is designed to be accessible to users of all programming backgrounds.
The OpenPilot CC3D EVO Flight Controller Straight Pin and OpenPilot CC3D EVO Flight Controller side Pin boards may not have any technical differences, with the only variance being the connector pins (straight pin vs. 90 side pin).

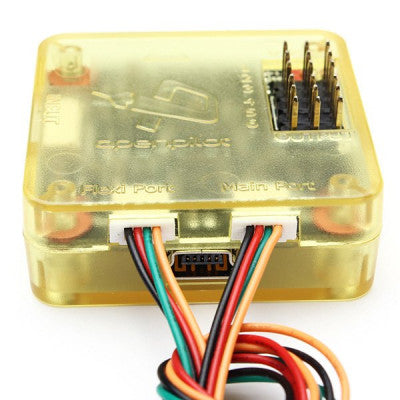

Flexiport:
Copter Control offers the innovative Flexiport, providing either I2C connectivity or a second serial port for enhanced flexibility in connectivity options.
Superior User Experience:

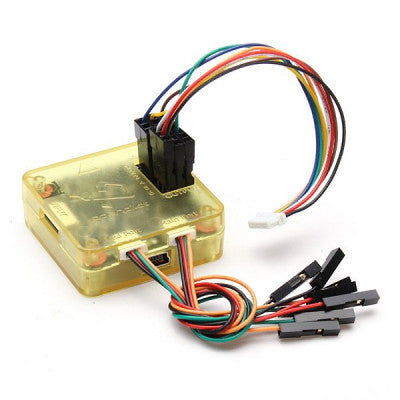

The CC3D is designed for ease of use, with no soldering required and a pre-flashed bootloader. The included RC harness allows connection to any standard PWM receiver. The OpenPilot software is user-friendly and supports multiple operating systems.
Sensors and Components:
- Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2
- Simultaneous support for multiple receivers
- 10 PWM outputs to servos or ESC’s
- Onboard USB connectivity for easy configuration
Package Includes:
- 1 x OpenPilot CC3D EVO Flight Controller Straight Pin
- 3 x Connecting Wires
- 1 x PC plastic shell
Images are for illustration only; actual product may vary.
