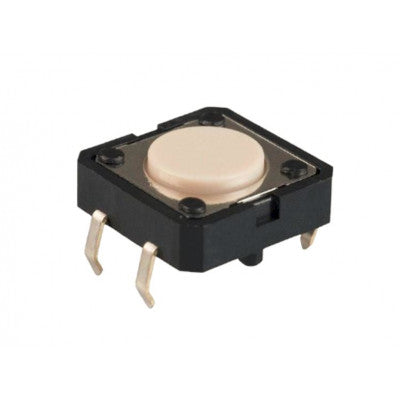

OMRON 12x12x4.3mm Tactile 4 Pin Push Button Switch
Widely used tactile switch with reliable dome contact technology and strong tactile feedback.
- Operating Voltage: 12 V DC
- Brand: OMRON
- Operating Current: 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Mounting Type: Through-hole
- Contact Material: Aluminium alloy
- Contact Resistance: 50m?
- Insulation Resistance: 100M?
- Operating Temperature Range: -20°C to +70°C
- Operation Force: About 3-5N
- Operation Stroke: 1.05mm
- Body Material: Plastic
- Mech. & Electrical Life: 300,000 Cycles
- Protection Grade: IP65
- Length (mm): 12
- Width (mm): 12
- Height (mm): 4.3
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Compact and lightweight
Oftentimes used as a standard input button in electronic projects, the OMRON 12x12x4.3mm Tactile 4 Pin Push Button Switch is ideal for mounting on PCBs or solderless breadboards for temporary connections in prototypes. The switch's pins are normally open but close momentarily when pressed, completing the circuit. With reliable dome contact technology and strong tactile feedback, this switch offers multiple operating forces to choose from, making it suitable for various applications including telecommunications, consumer electronics, medical devices, and more.
The tactile switch boasts a high operating force, a long life of 300,000 cycles, and a middle stroke of 1.05mm. Its high precision mechanism design ensures acute operation and a long service life. Additionally, the switch is compact, lightweight, and offers good electrical conductivity, making it easy to carry and dismantle.
Package Includes: 1 x OMRON 12x12x4.3mm Tactile 4 Pin Push Button Switch
* Images are for illustration only; actual product may vary.
