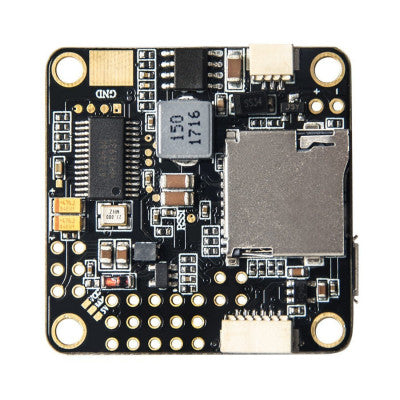

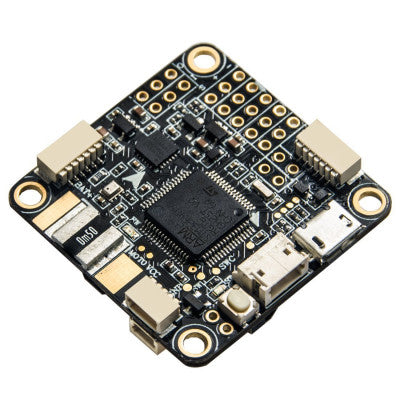

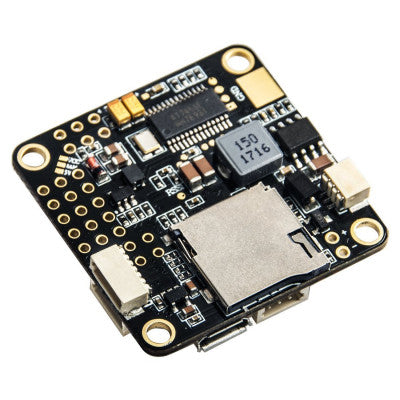

OMNIBUS F4 V2 PRO Flight Controller with SD Card Slot & BEC
All-new flight controller with STM F4 processor for faster loop times and built-in BEC.
- Model: Omnibus F4 V2 PRO
- Firmware: Beta Flight 3.1.7_OMNIBUSF4SD
-
Sensors:
- Barometer: BMP280
- Built-in Current Sensor
- MPU6000
- Processor: STM32-F405 RGT6
- Micro-SD Card Slot: Yes
- Dimensions (mm) LxWxH: 37 x 37 x 5
- Weight (gm): 18
Features:
- SBUS/PPM input (Pin headers)
- STM32 F405 MCU processor
- On-Board Video Filter (5V to VTX and Camera)
- Power Supply: 5V/3A
The OMNIBUS F4 V2 PRO Flight Controller is designed with the powerful STM F4 processor for faster loop times compared to its predecessor, the Omnibus F3 pro. It includes features like an OSD module, SD card reader, low noise MPU6000 IMU, current and voltage sensors, and now, a built-in BEC for direct power from the flight battery (up to 4s).
The STM32F405 processor ensures excellent performance with the Betaflight F4 Flight Controller, offering a 32bit processor and built-in OSD for easy access to flight data. The MPU600 sensor provides a 3-axis gyroscope and accelerometer for stability during flight.
The built-in BEC (Battery Elimination Circuit) on the Omnibus F4 V2 PRO can convert main LiPo battery pack voltage to a lower voltage, eliminating the need for a separate battery to power the flight controller.
For optimal performance, ensure proper soldering to avoid short circuits. If facing issues with PPM receiver recognition, enable RX_serial in the GUI, turn on UART3, and re-select RX_PPM on the GUI for communication.
*Images are for illustration only; actual product may vary.
