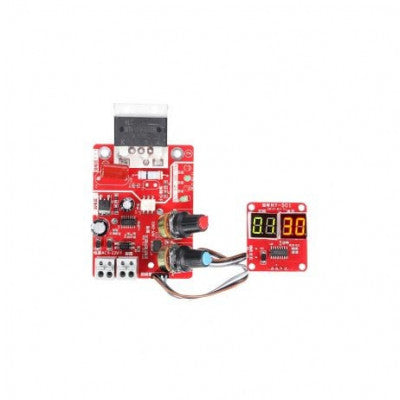

NY-D01 100A Digital Display Spot Welding Controller Board
Adjust welding time and current with precision using this digital display controller board.
- Material: Plastic Metal
- Controller Compatibility: 100A SCR
- Digital Control Interface: Yes, displays time and current settings
- Time Input: 1-50, unit cycle (1 cycle is 20ms)
Top Features:
- STM8 industrial control centre microcontroller
- Optocoupler insulation for safe operation
- Bolt quick connect terminals for power and foot switch lines
- High-precision potentiometer for reliable input
The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve welding. With a digital display, you can directly see the time and current. Optocoupler isolates the strong and weak electricity, making the operation safer. Using a high-precision single potentiometer to ensure reliable and convenient input. The design of a reliable zero-crossing detection circuit ensures the SCR phase shift accuracy. Made of high-quality PCB, the control board is long-lasting. The module is 8cm long, 6cm wide and 2cm high. It is developed for DIY or simple resistance welding.
* Images are for illustration only; actual product may vary.
