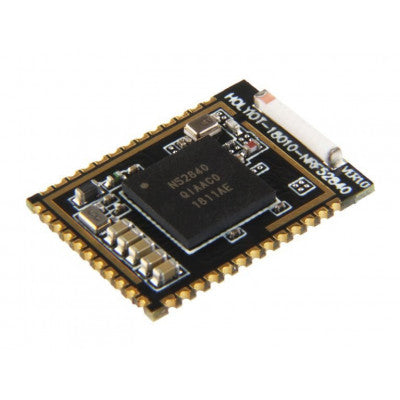

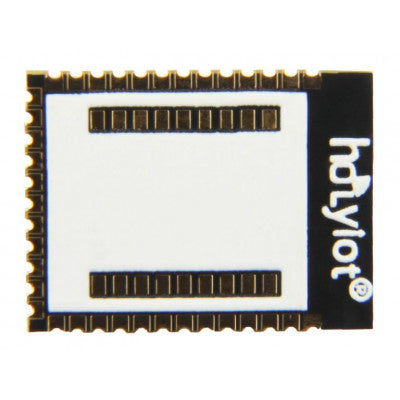

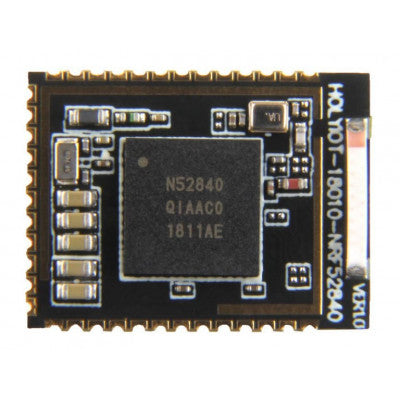

NRF52840 Low Power BLE Module
Bluetooth Low Energy module using Nordic NRF52840 SoC solution
- Chip: NRF52840 QIAAC0 Revision 1
- BLE Antenna: Ceramic Antenna
- BT Range: 500 meters for Bluetooth 5
- Processor: 32-bit ARM Cortex-M4 with FPU
- 128 bit AES: ECB/CCM/AAR co-processor
- Programmable output power: +8dBm to -20dBm
- Voltage Range: +1.7V to 5.5V
- Length (mm): 18.3
- Width (mm): 14
- Height (mm): 2
- Weight (gm): 10
Top Features:
- Full Bluetooth 5 support for long radio
- Processing power and flash flexibility
- Multiprotocol radio
- High-speed SPI interface 32MHz
The NRF52840 Low Power BLE Module is designed around an ARM Cortex-M4 CPU with a floating-point unit (FPU) and has 1MB flash with cache and 256kB RAM. It offers a wealth of peripherals that include NFC, USB, and multiple interface options including Quad SPI (QSPI). The module is suitable for complex and demanding applications as a single-chip solution. Security features include an ARM Cryptocell-310 cryptographic system on chip and a full AES 128-bit encryption suite.
Applications:
- Internet of Things (IoT)
- Smart Home sensors
- Computer peripherals
- Sports and fitness sensors and hubs
- Smartwatches
- Interactive games
- Wearables
- Connected white goods
- Voice-command smart remotes
- Connected health products
- RC Toys
- Building automation and sensor networks
Images are for illustration only; actual product may vary.
