NRF51822 Eval Kit

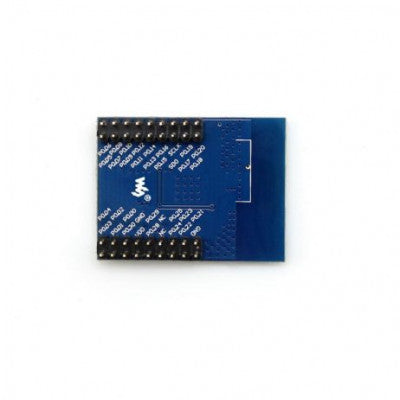

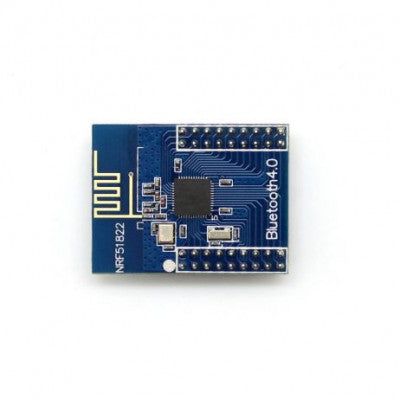

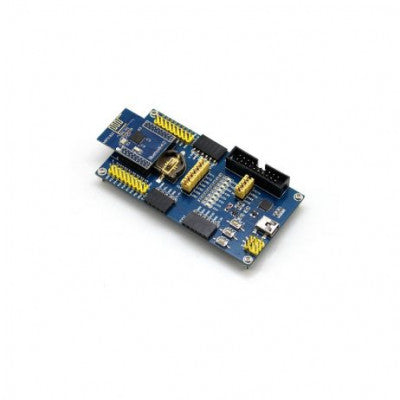

A development/evaluation kit designed for nRF51822, consisting of BLE400 motherboard and Core51822 wireless module.
- Model: NRF51822
- Onboard Chip: nRF51822
- Communication Distance: 30m (open outdoor @ 1M data rate)
- Frequency Range: 2.4GHz
- Operating Voltage: 2.0V - 3.6V
- Operating Temperature: -40°C - 85°C
- Pin Header Pitch: 2.00mm
- Antenna Type: Onboard PCB Antenna
- Length (mm): 94.74
- Width (mm): 49.78
- Height (mm): 2
- Weight (gm): 10
Features:
- 2.4 GHz multiprotocol RF transceiver
- ARM Cortex-M0 32 bit processor
- 128 bit AES HW encryption
- 256kB flash & 32kB RAM

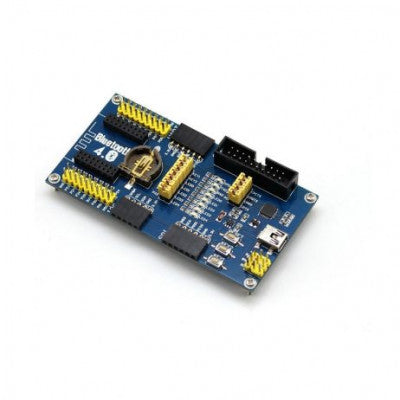

What's on the BLE400:
Wireless module connector for easy module connection, MCU pins expansion connector, I2C & SPI interfaces, 5V/3.3V power I/O, USB TO UART, debugging & UART interfaces, battery holder, user LEDs & keys, reset button, CP2102, USB TO UART jumper, LEDs & keys jumper.
Applications:
Wearable devices, Bluetooth intelligent applications, mobile phone accessories, RFID labels, smart home appliances, industry control, data acquisition system.
Revision History:
2015.06 - Core51822 upgraded onboard chip to Rev3 with 32kB RAM, supports higher version SDK, demo codes remain compatible with Rev2.
Package Includes:
1 x Bluetooth 4.0 NRF51822 Eval Kit, 1 x USB type A to Mini-B cable.
*Images are for illustration only; actual product may vary.
