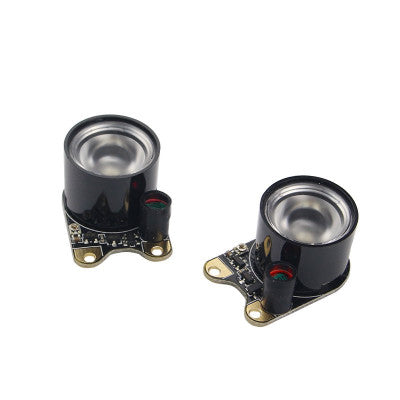

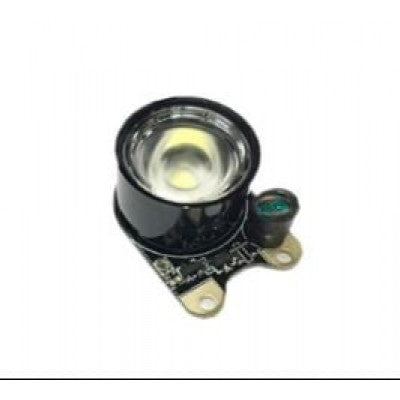

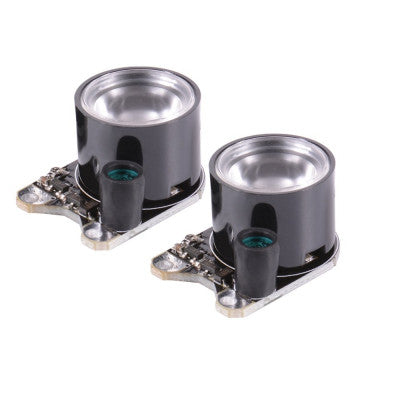

Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera

Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera

Add night vision capabilities to your Raspberry Pi camera project with this infrared light.

• Compatibility: Night Vision Surveillance Camera Module
• Operating Voltage (VDC): 5
• Max. Operating Current (mA): 600
• Power (W): 3

Features:

• Small size and lightweight
• Easy to use
• Equipped with onboard photoresistor and adjustable resistor

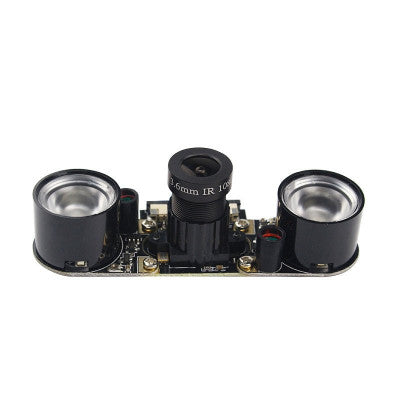

• Adds night vision function to RPi Camera (E) or RPi Camera (F)

This Night Vision Sensitive Infrared Light 3W is designed to work seamlessly with our Infrared IR Night Vision Surveillance Camera Module 500W Webcam. It features an onboard photoresistor for ambient light detection and an adjustable resistor to control the infrared LED based on ambient light levels.

How to Use:

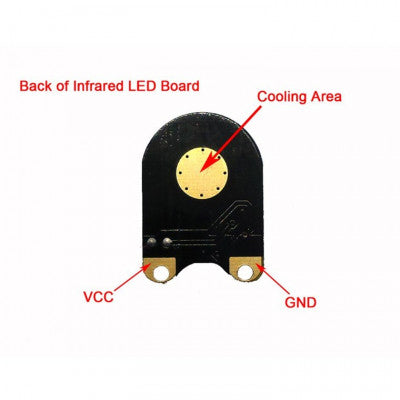

1. Connect the Infrared LED Board to the camera PCB using screws.
2. Use the screw holes for attachment and power supply.
3. Adjust the adjustable resistor to set the ambient light threshold for automatic toggling of the infrared LED.
4. When ambient light is below the threshold, the infrared LED turns on; vice versa.

Note:

• The high-power 3W infrared LED may cause the Pi to heat up; consider using heat sinks.
• Ideal imaging distance is within 3m; beyond 6m, the camera may capture blurry outlines.

Package Includes:

• 2 x Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera
• 1 x Screw Set

* Images are for illustration only; actual product may vary.
