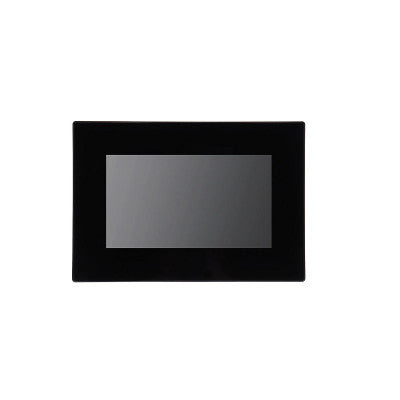

Nextion Intelligent NX8048P050_011C_Y HMI 5.0 Capacitive Touch Display
Capacitive touch display with easy microcontroller interfacing
- Model: NX8048P050-011C-Y
- Operating Voltage: 5 V
- Operating Current: 220 mA
- Touch type: Capacitive
- Touches: > 1 million
- Backlight: LED
- Brightness: 300nit
- Serial Port Mode: 3.3V/5.0V TTL
- FLASH Memory: 120 MB
- Resolution: 800x480 pixel
- Working Temperature Range (C): -20 to 70
- Length (mm): 160
- Width (mm): 110
- Height (mm): 20
- Weight (gm): 250
Top Features:
- 5.0 LCD-TFT HMI display module
- RGB 65K true-to-life colors
- Capacitive touch panel
- 300 nit Brightness
This display from the newly launched Intelligent series is designed for easy interfacing with microcontrollers. It can be connected using a simple UART port, requiring only 2 wires. The built-in microcontroller manages button clicks, text creation, image storage, and background changes. It is compatible with a wide range of microcontrollers including Arduino, Raspberry Pi, ESP8266, ESP32, PIC, AVR, ARM, and even basic 8051 microcontrollers.

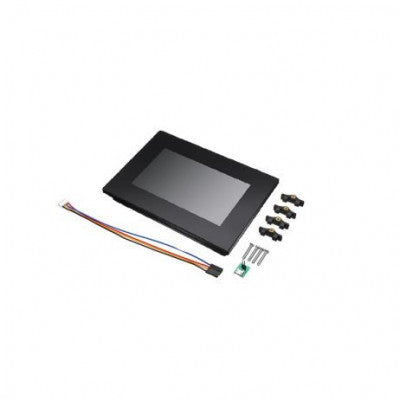

The package includes a small power supply test board and connecting wire for easy setup and testing of the electrical supply. Communicate with your microcontroller via serial communication at a 9600 baud rate.
Images are for illustration only; actual product may vary.
