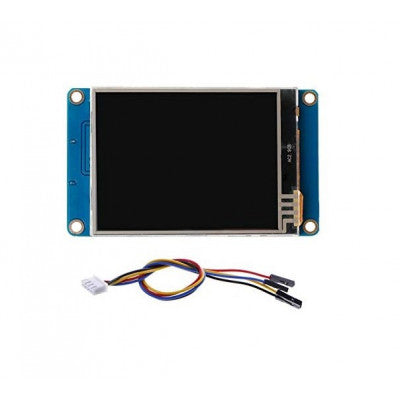

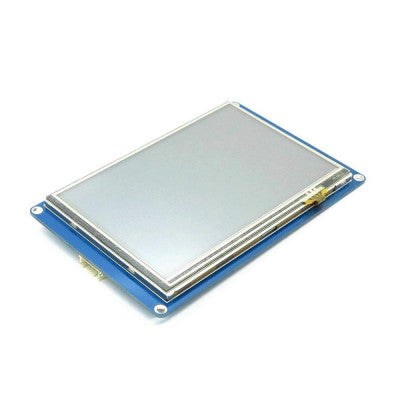

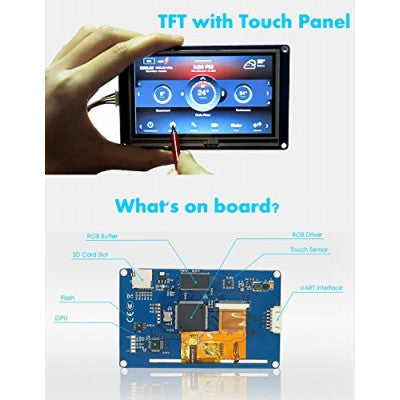

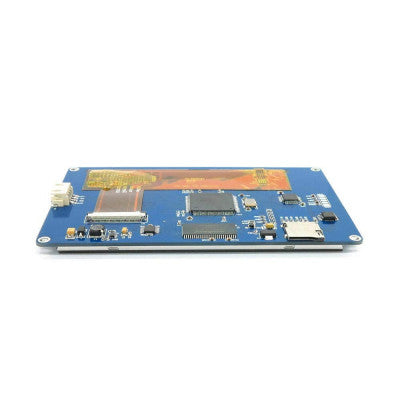

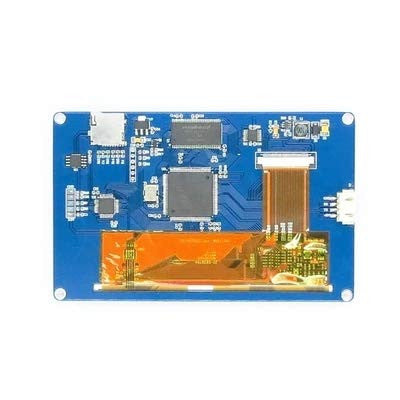

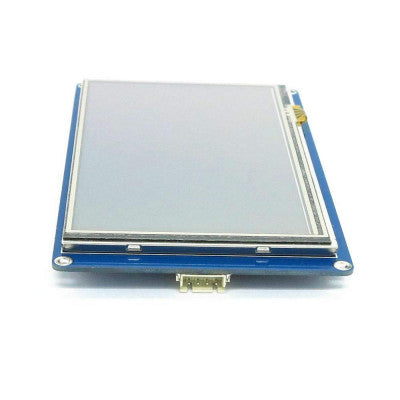

Nextion Enhanced NX8048K050 5.0 HMI TFT Display
A powerful HMI solution for IoT and consumer electronics applications.
- Model No: NX8048K050
- Operating Voltage (VDC): 5
- Max. Operating Current (mA): 1A
- Display Layout Size (L x W x H) mm: 133.5 x 84 x 6.8
- Net weight (gm): 128
- Touch Type: Resistive
- Colors: 65K (65536)
- Recommended Power Supply: 5V 1A
- Working Temperature Range (C): 25 to 65
- Working Humidity Range: 10% to 90% RH
- USB Interface: Mini-B (2.54mm pitch pin header)
- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Memory Features: Flash Memory 32 MB, RAM 8192 bytes
- Backlight: LED
- Backlight Lifetime (Avg): >30,000 Hours
Top Features:
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max 32G Micro TF/SD card
- Adjustable Brightness: 0~230 nit

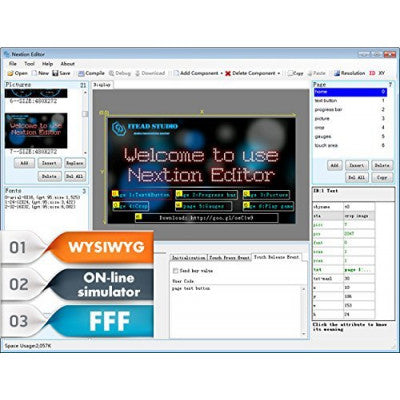

Nextion Enhanced NX8048K050 is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. It is the best solution to replace traditional LCD and LED Nixie tubes. The Nextion TFT board uses only one serial port to communicate, making it hassle-free for users. The Nextion editor comes with mass components such as buttons, text, progress bars, sliders, and instrument panels to enrich interface design. The drag-and-drop function ensures users spend less time programming, reducing their development workloads significantly. Designing a GUI is made easy with the WYSIWYG editor. Users can easily adapt Nextion family HMI to existing projects by providing it with a UART.

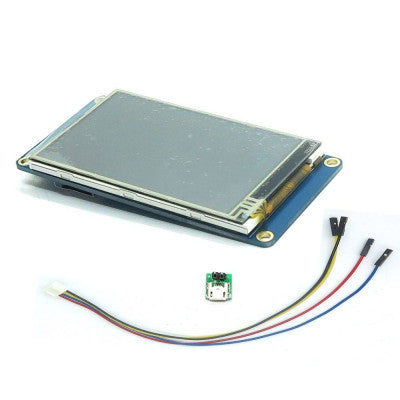

Package Includes:
- 1 x 5.0 Nextion Enhanced HMI Display
- 1 x Power supply test board
- 1 x 4-pin grove cable
*Images are for illustration only; actual product may vary.
