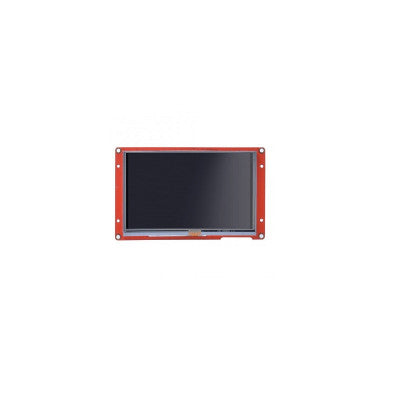

Nextion Intelligent NX4827P043-011C 4.3 HMI Capacitive Touch Display
A versatile capacitive touch display with built-in microcontroller for easy interfacing.
- Model: NX4827P043-011C
- Operating Voltage: 5 V
- Operating Current: 220 mA
- FLASH Memory: 128 MB
- RAM Memory: 512 KB
- Serial Port Mode: 3.3V/5.0V TTL
- Touch type: Capacitive
- Touches: > 1 million
- Brightness: 300nit
- Resolution: 480x272 pixel
- Color: 65K 65536
- Operating Temperature Range (C): -20 to 70
- Length (mm): 120
- Width (mm): 75
- Height (mm): 13
- Weight (gm): 110
Features:
- 128 MB of Flash memory
- 1024 Byte EEPROM
- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
- 1.25T-2-2A Audio port for external speaker connection

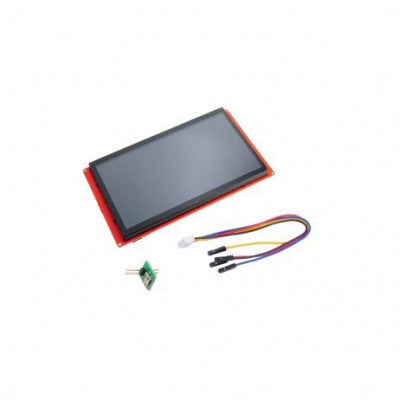

The Nextion Intelligent NX4827P043-011C-Y 4.3 Capacitive Touchscreen Display with Enclosure is designed to work seamlessly with various platforms including Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller, and even basic 8051 microcontrollers. The package includes a small power supply test board and connecting wire for easy setup and testing of electrical supply.
With a built-in microcontroller, this display simplifies the interface by handling button clicks, text creation, image storage, background changes, and more. It also features 8 digital extended GPIO for versatile connectivity options.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
