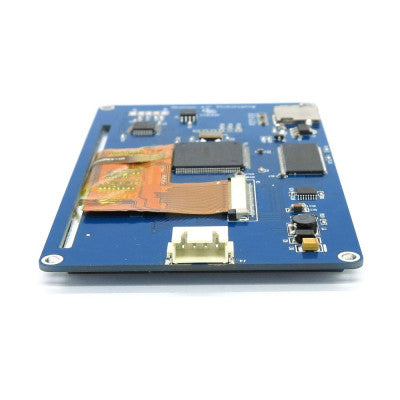

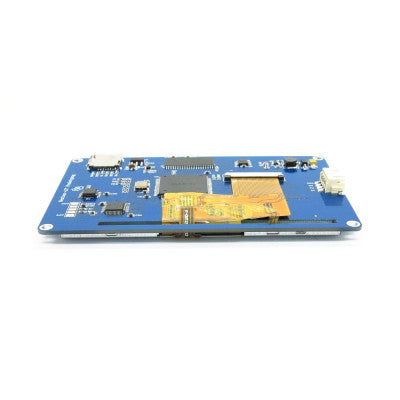

Nextion NX4827T043 4.3 TFT LCD ManMachine Interface HMI Kernel Intelligent Touch Display
A seamless Human Machine Interface (HMI) solution for IoT and consumer electronics applications.
- Model No: NX4827T043
- Display Type: 011R (R:Resistive Touchscreen)
- Operating Voltage (VDC): 4.75 ~ 7
- Max. Operating Current (mA): 250
- Net weight (gm): 93
- Touch Type: Resistive
- Colors: 65K (65536)

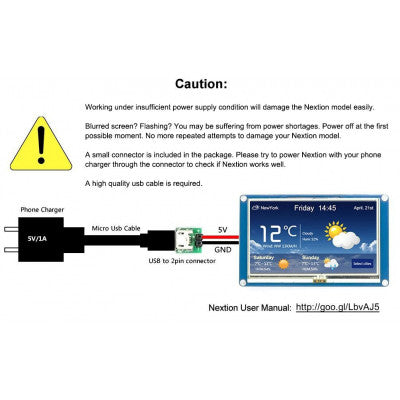

- Recommended Power Supply: 5V, 500mA, DC
- Working Temperature Range (C): -20 to 70
- Working Humidity Range: 10% to 90% RH
- USB Interface: No
- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Memory Features: Flash Memory 16 MB, RAM 3584 BYTE
Features:
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- 480 x 272 Resolution
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
Nextion is the best solution to replace traditional LCD and LED Nixie tubes. It includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The TFT board uses only one serial port for communication, simplifying wiring. The editor provides mass components like buttons, text, progress bars, sliders, and more for easy interface design. The drag-and-drop function reduces programming time significantly.
Users can adapt Nextion family HMI to existing projects with ease. Technical support is available through the Itead Support System.

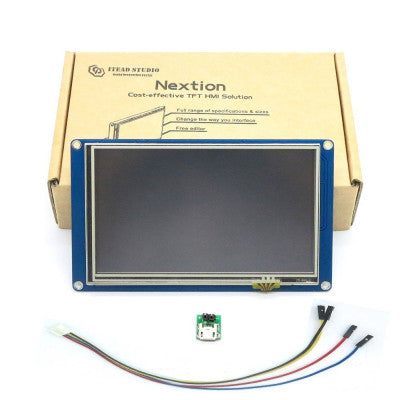

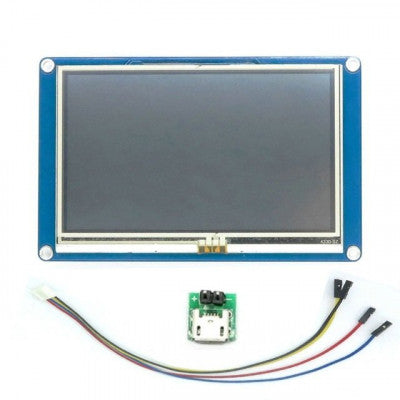

Package Includes:
- 1 x Nextion NX4827T043 4.3 TFT LCD Intelligent Touch Display
- 1 x Connecting Wires
- 1 x Power Supply Test Board
* Images are for illustration only; actual product may vary.
