Nextion NX4832f035 3.5 Discovery Series SMART HMI Touch Display
Cost-effective HMI solution with low power consumption and improved performance.
- Brand: Nextion
- Model: NX4832F035
- Input Voltage (V): DC 5V 500mA
- Pixel Resolution: 480x320 pixel
- Panel Type: TFT
- Color: 64K 65536 colors
- Backlight: LED White
- Backlight Lifetime (Avg): >30,000 Hours
- Working Temperature Range (C): -20 to 70
Features:

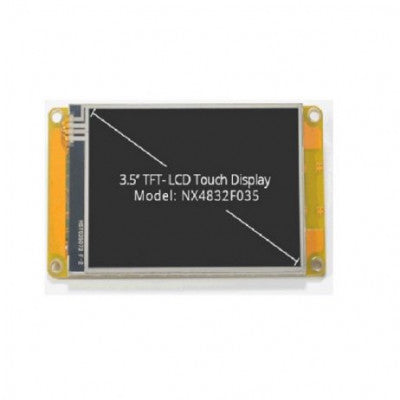

- 3.5 LCD-TFT Resistive HMI touch display
- 480 x 320 screen resolution
- RGB 65K true-to-life colors

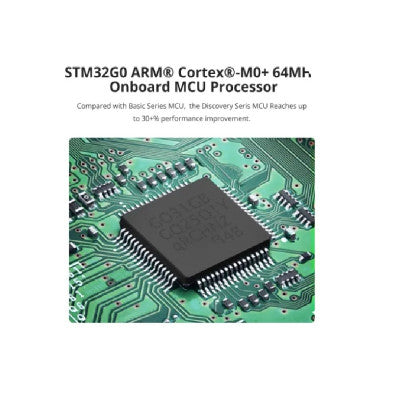

- Onboard ARM Cortex-M0+ 64MHz MCU

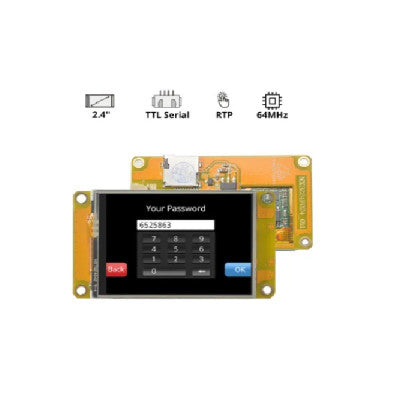

The Nextion NX4832f035 is a 3.5 Discovery series SMART HMI Touch display with a resistive touch screen. It is a cost-effective HMI solution based on the STM32GO ARM Cortex-M0+ 64MHz Onboard MCU Processor. When the Deep Sleep Mode is activated, the device's working current is down to 0.25 mA, ensuring longer battery life for your HMI device. The discovery series offers up to 30% more performance improvement compared to the basic series.
The Next Discovery NX4832f035 3.5 Resistive Touchscreen Display is compatible with various boards and microcontrollers, including Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller, and even basic 8051 microcontrollers that have a UART port. It features a simple interface that makes it easy to work with.

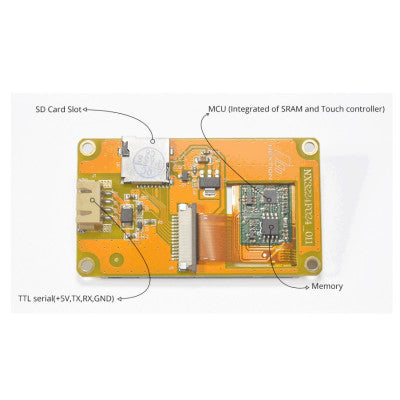

The Nextion includes both hardware (TFT boards) and software (Nextion editor) components. The TFT board uses only one serial port for communication. The Nextion editor provides a variety of components such as buttons, text, progress bars, sliders, and instrument panels to enhance interface design. The drag-and-drop function reduces programming time, making GUI design effortless with the WYSIWYG editor.
Package includes:
- 1 3.5 Nextion HMI Display
- 1 power supply test board
- 1 x 4-pin grove cable
* Images are for illustration only; actual product may vary.
