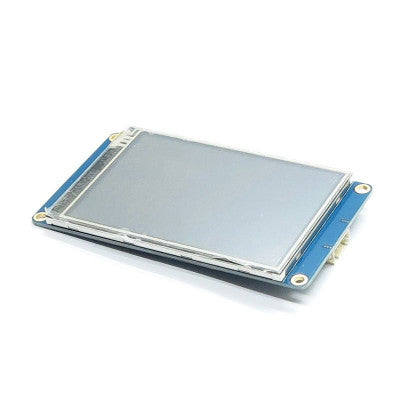

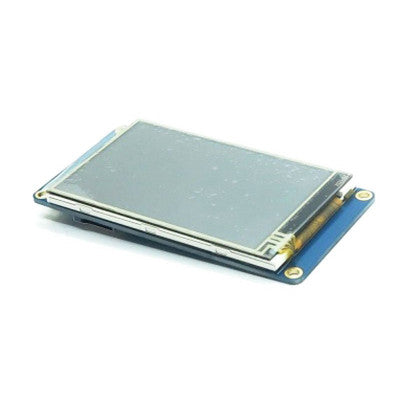

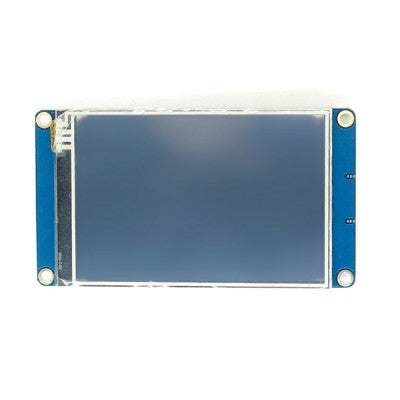

Nextion NX4832T035 3.5 inch HMI TFT LCD Touch Display Module
A seamless Human Machine Interface (HMI) solution for IoT and consumer electronics applications.
- Model No: NX4832T035
- Display Type: 011R (R:Resistive Touchscreen)
- Operating Voltage (VDC): 4.75 ~ 7
- Max. Operating Current (mA): 145
- Net weight (gm): 52
- Touch Type: Resistive
- Colors: 65K (65536)

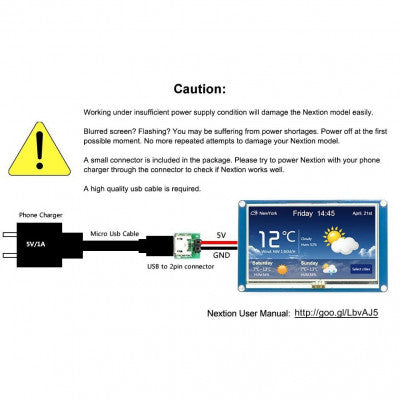

- Recommended Power Supply: 5V, 500mA, DC
- Working Temperature Range (C): -20 to 70
- Working Humidity Range: 10% to 90% RH
- USB Interface: No

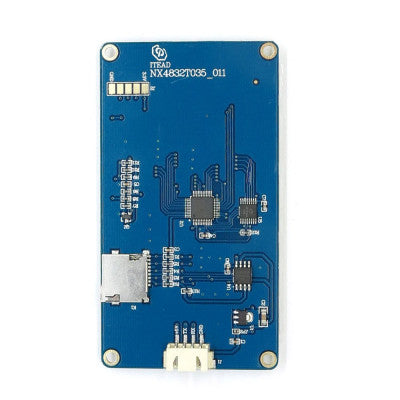

- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Flash Memory: 16 MB
- RAM: 3584 BYTE
Top Features:
- 480 x 320 Resolution
- RGB 65K true to life colors
- TFT screen with integrated resistive touch panel
- 16M Flash memory for User Application Code and Data
Nextion NX4832T035 3.5 inch HMI TFT LCD Touch Display Module is a powerful 3.5 HMI, which is a member of Nextion family. It includes a hardware part (a series of TFT boards) and a software part (theNextion editor). The Nextion TFT board uses only one serial port to communicate, simplifying wiring. The Nextion editor provides a user-friendly interface design experience with drag-and-drop functionality, reducing programming time significantly.
Users can easily adapt Nextion family HMI to existing projects by providing it with a UART. The module features adjustable brightness, a micro-SD card slot for firmware upgrades, and consumes low power. It is CE/EMC and RoHS certified, ensuring quality and compliance.
Interfaces Performance:
- Serial Port Baudrate: Standard 2400-115200bps
- Output Voltage(TXD) Output 1: 3.0-3.2V
- Output Voltage(TXD) Output 0: 0.1-0.2V
- Input Voltage(RXD) Output 1: 2.0-3.3V
- Input Voltage(RXD) Output 0: -0.7-0.1V
- Serial Port Mode: TTLSerial Port4Pin_2.54mm with Lock
- USB interface: No
- SD card socket: Yes (FAT32 format), support maximum 32G Micro TF/SD Card

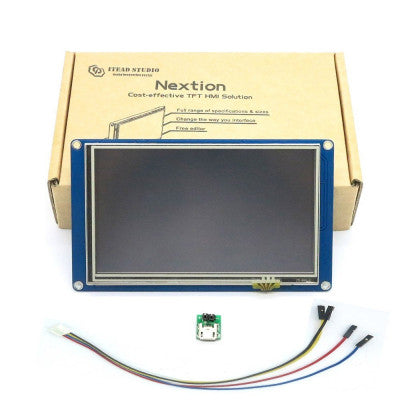

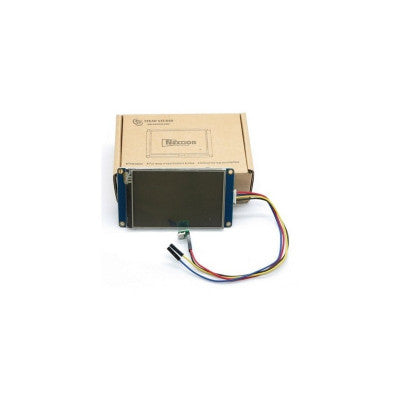

Package Includes:

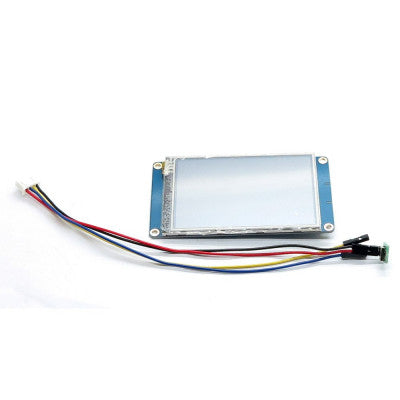

- 1 x Nextion NX4832T035 3.5 HMI Kernel TFT LCD Touch Display Module
- 1 x Connecting Wires
- 1 x Power Supply Test Board
* Images are for illustration only; actual product may vary.
