Nextion NX4024T032 Generic 3.2 HMI TFT Intelligent LCD Touch Display Module
A seamless Human Machine Interface (HMI) solution for IoT and consumer electronics applications.
- Model No: NX4024T032
- Display Type: 011R (R:Resistive Touchscreen)
- Operating Voltage (VDC): 4.75 - 7
- Max. Operating Current (mA): 85
- Display Layout Size (L x W x H) mm: 95 x 47.6 x 5.8
- Net weight (gm): 43
- Touch Type: Resistive
- Colors: 65K (65536)
- Recommended Power Supply: 5V, 500mA, DC
- Working Temperature Range (C): -20 to 70
- Working Humidity Range: 10% to 90% RH
- USB Interface: No

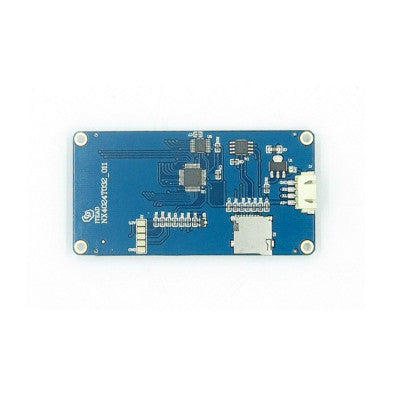

- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Memory Features: Flash Memory 4 MB, RAM 3584 BYTE
Top Features:
- 400 x 240 Resolution
- RGB 65K true to life colors

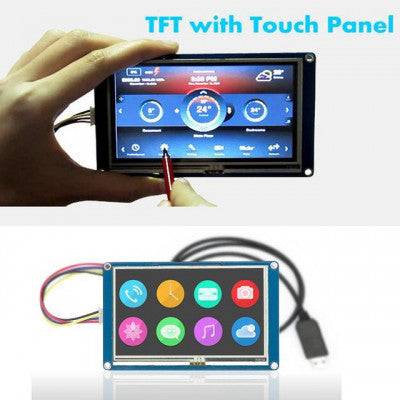

- TFT Screen with integrated 4-wire Resistive Touch Panel
- Easy 4 pin interface to any TTL Serial Host
Nextion is the best solution to replace traditional LCD and LED Nixie tube displays. It includes a hardware part with TFT boards and a software part with the Nextion editor. The editor simplifies interface design with components like buttons, text, progress bars, sliders, and more. The drag-and-drop function reduces programming time significantly, making GUI design effortless.
Users can easily adapt Nextion family HMI to existing projects by providing it a UART. The module features adjustable brightness, onboard micro-SD card for firmware upgrades, and consumes 5V 85mA power. It is CE/EMC, RoHS certified.
For technical support, please open a ticket on Itead Support System.

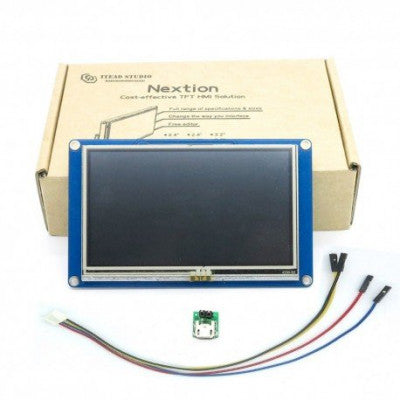

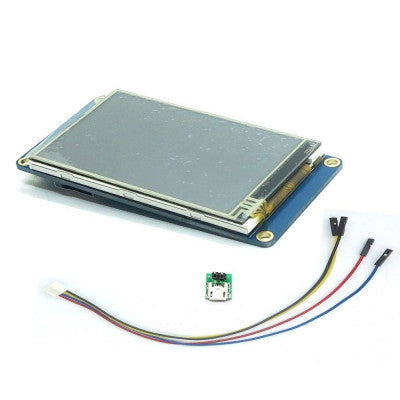

Package Includes:
- 1 x Nextion NX4024T032 Generic 3.2 HMI TFT Intelligent LCD Touch Display Module
- 1 x Connecting Wires

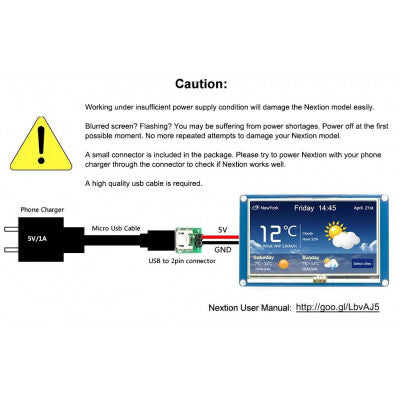

- 1 x Power Supply Test Board
* Images are for illustration only; actual product may vary.
