Nextion NX3224T028 Generic 2.8HMI LCD Touch Display
A seamless HMI solution for IoT and consumer electronics applications.
- Model No: NX3224T028
- Display Type: NX3224T024_011R (R: Resistive touchscreen)
- Operating Voltage (VDC): 4.75 ~ 7
- Max. Operating Current (mA): 90
- Display Layout Size (L x W x H) mm: 74.4 x 42.9 x 5.8
- Net weight (gm): 25
- Touch Type: Resistive
- Colors: 65K (65536)
- Recommended Power Supply: 5V, 500mA, DC
- Working Temperature Range (C): -20 to 70
- Working Humidity Range: 10% to 90% RH
- USB Interface: No
- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Flash Memory: 4 MB
- RAM: 3584 BYTE
Features:
- 320 x 240 Resolution
- RGB 65K true to life colours
- TFT screen with integrated resistive touch panel
- 4 pin TTL serial interface
Nextion NX3224T028 Generic 2.8HMI LCD Touch Display is a powerful 2.8 HMI from the Nextion family. It features a 2.8 TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, and 65k colors. The display layout size is 74.4mm x 42.9mm x 5.8mm and has a net weight of 25g. It operates at an operating voltage of 4.75V to 7V with a maximum operating current of 90mA.
The Nextion TFT board simplifies communication with only one serial port, eliminating wiring hassles. The Nextion editor offers a WYSIWYG interface design with components like buttons, text, progress bars, sliders, and more, reducing development workloads by 99%. It is compatible with Raspberry Pi, Arduino, and comes with CE/EMC, RoHS certificates.

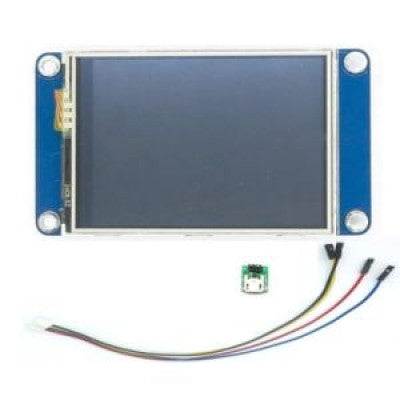

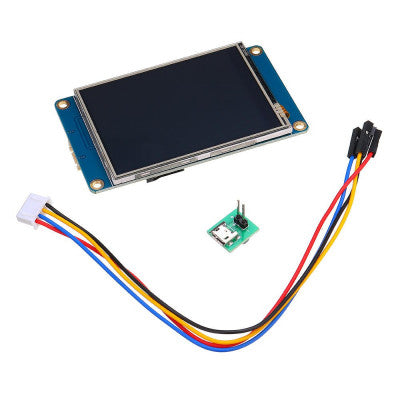

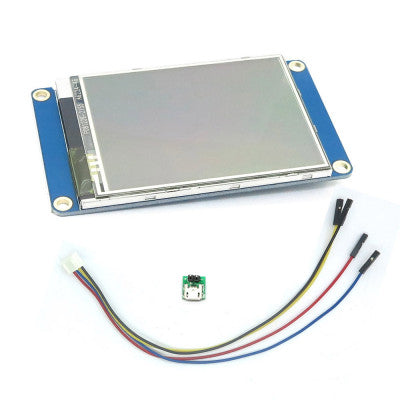

Package Includes:
- 1 x Nextion NX3224T028 Generic 2.8HMI LCD Touch Display
- 1 x power supply test board
- 1 x 4-pin grove cable
*Images are for illustration only; actual product may vary.
