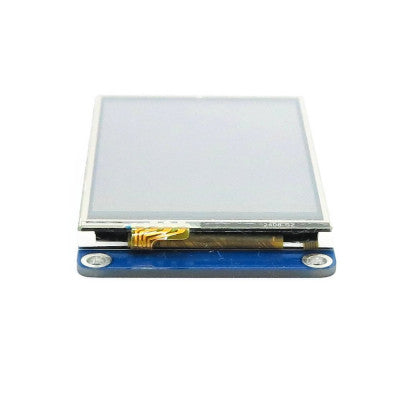

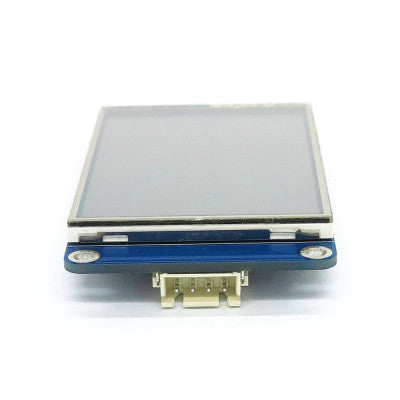

Nextion NX3224T024-Generic 2.4 TFT Intelligent Man Machine Interface HMI kernel LCD Touch Display
A seamless Human Machine Interface (HMI) solution for IoT and consumer electronics applications.
- Model No: NX3224T024
- Display Type: NX3224T024_011R (R: Resistive touchscreen)
- Operating Voltage (VDC): 4.75 ~ 7
- Max. Operating Current (mA): 90
- Display Layout Size (L x W x H) mm: 74.4 x 42.9 x 5.8
- Net weight (gm): 31
- Touch Type: Yes
- Colors: 65K (65536)

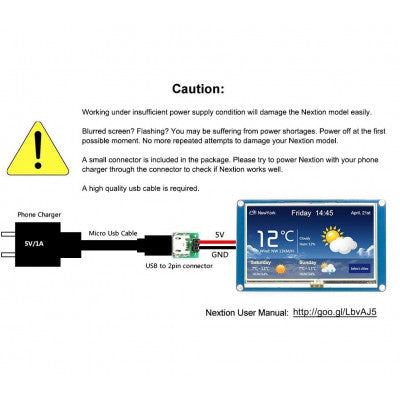

- Recommended Power Supply: 5V, 500mA, DC
- Working Temperature Range (C): -20 to 70
- Working Humidity Range: 10% to 90% RH
- USB Interface: No

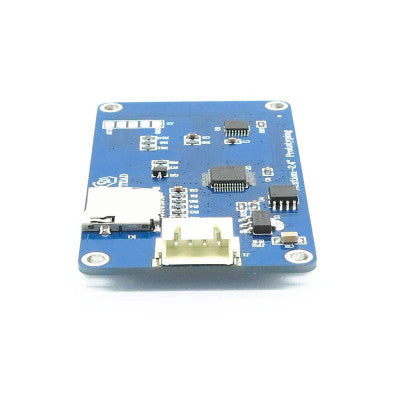

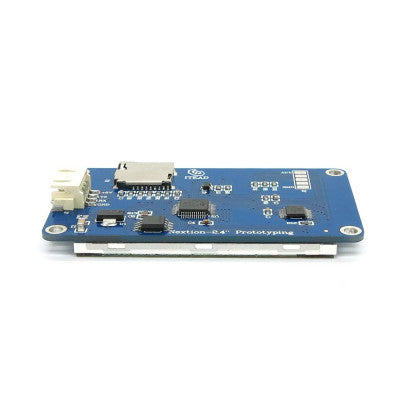

- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Flash Memory: 4 MB
- RAM: 3584 BYTE
Top Features:
- 320 x 240 Resolution
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- RGB 65K true to life colors
- 4M Flash memory for User Application Code and Data
Nextion is the best solution for engineers looking to enhance interface design and reduce development workloads. The TFT board's simple serial port communication and drag-and-drop interface design make it easy to adapt to existing projects.

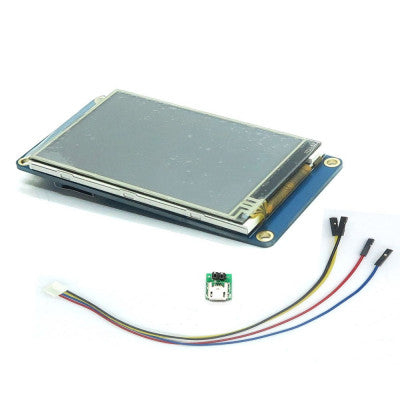

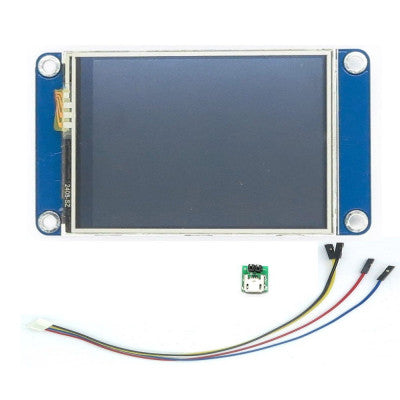

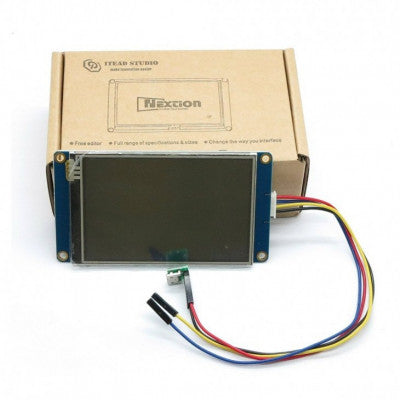

Package Includes:
- 1 x Nextion NX3224T024 Generic 2.4 TFT Intelligent LCD Touch Display
- 1 x Connecting Cable
- 1 x Power Supply Test Board
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com
+91-8095406416
Images are for illustration only; actual product may vary.
