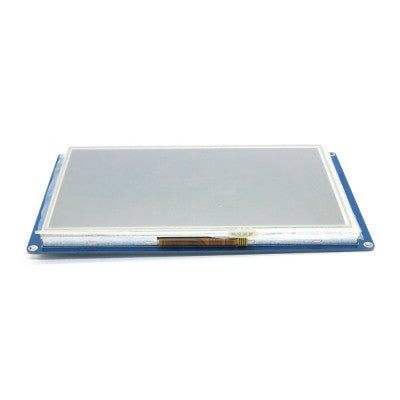

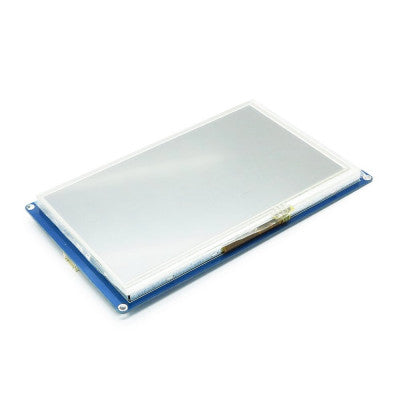

Nextion NX8048T070-Generic 18.1 cm (7 inch) HMI TFT LCD Touch Display
A seamless Human Machine Interface (HMI) solution for IoT and consumer electronics applications.
- Model No: NX8048T070
- Display Type: 011R (R:Resistive Touchscreen)
- Operating Voltage (VDC): 4.75 ~ 7
- Max. Operating Current (mA): 510
- Display Layout Size (L x W x H) cm: 18.1 x 10.8 x 0.9
- Net weight (gm): 270
- Touch Type: Resistive
- Colors: 65K (65536)

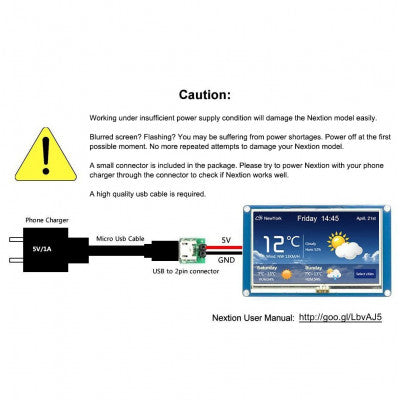

- Recommended Power Supply: 5V, 500mA, DC
- Working Temperature Range (C): -20 to 70
- Working Humidity Range: 10% to 90% RH
- USB Interface: No
- Micro-SD Card Slot: Yes (FAT32 format), support maximum 32G Micro SD Card
- Flash Memory: 16 MB
- RAM: 3584 BYTE
Top Features:
- Compatible with Raspberry Pi, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colors
- 4 pin TTL serial interface
Nextion NX8048T070-Generic 18.1 cm (7 inch) HMI TFT LCD Touch Display is a powerful HMI solution that simplifies interface design and application development. It features a 7-inch TFT 800x480 resistive touchscreen display, 16M Flash, 2KByte RAM, and 65k colors. The Nextion editor provides a user-friendly interface design experience with drag-and-drop functionality, reducing programming time significantly.
Users can easily integrate the Nextion family HMI into existing projects by providing it with a UART connection. The display module also includes an integrated 4-wire Resistive Touch Panel, making it versatile for various DIY projects.
For technical support, please open a ticket on Itead Support System.
Package Includes:
- 1 x Nextion NX8048T070 Generic 7.0 HMI TFT LCD Touch Display
- 1 x Connecting Cable
- 1 x Power Supply Test Board
* Images are for illustration only; actual product may vary.
