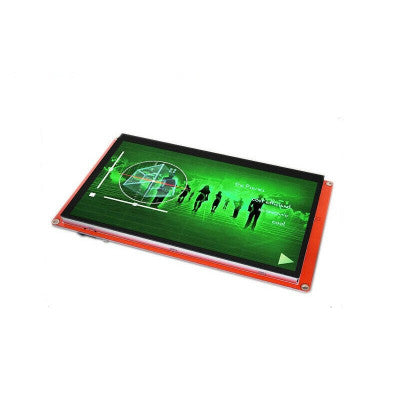

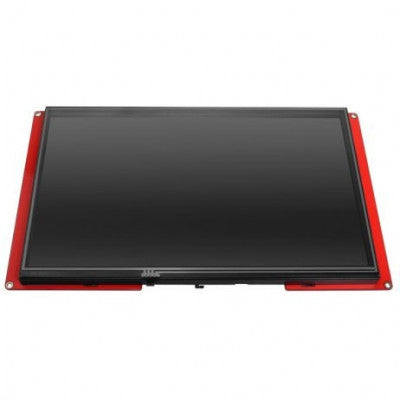

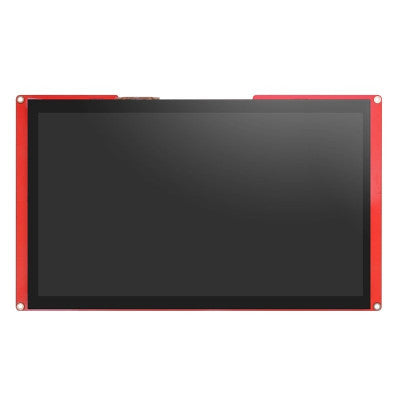

Nextion Intelligent Series HMI Display
A powerful HMI solution with advanced features for seamless project development
- Model: NX1060P101-011R-I (HMI Resistive Touch Display)
- Size: 10.1 inch
- Pixels: 1024x600
- Touch Panel: Resistive (RTP)
- Flash (MB): 128
- RAM (KB): 512
- MCU (MHz): 200
- GPIOs: 8
- Color: 65536
- EEPROM (Byte): 1024
- RTC: Yes
- Length (mm): 258
- Width (mm): 152
- Height (mm): 11.5
Top Features:
- 200MHz Onboard MCU
- 128MB Flash for HMI project
- Resistive Touchscreen
- 8 Digital GPIOs
Nextion Intelligent Series HMI Display is a cutting-edge solution that combines an onboard processor and memory touch display. It offers a seamless development experience with the Nextion Editor software, allowing you to create HMI GUI projects effortlessly.
The Intelligent Series products boast powerful hardware, including MCU, Flash storage, and SRAM, surpassing the Basic and Enhanced Series. With added audio, video, and animation play functions, users can enhance their project's HMI interaction.
Developing HMI GUI projects is simplified with the free Nextion Editor software version 0.58 or above. The drag-and-drop components and ASCII text-based instructions streamline the development process, reducing workloads significantly.
The Intelligent Series supports advanced software features like transparent components, page loading effects, component movement, and drag functionality, providing a dynamic user experience.
Connect the Nextion HMI display to a peripheral MCU via TTL Serial interface to receive event notifications for seamless interaction. The peripheral MCU can update progress and status back to the display using simple ASCII text-based instructions.
Package Includes:
- 1 x NX1060P101-011R-I HMI Display
- 1 x XH2.54 4P Wire
- 1 x Power Supply Test Board
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
