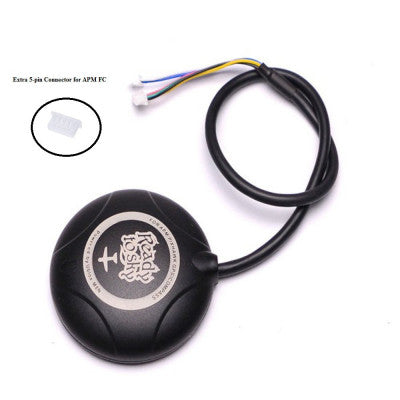

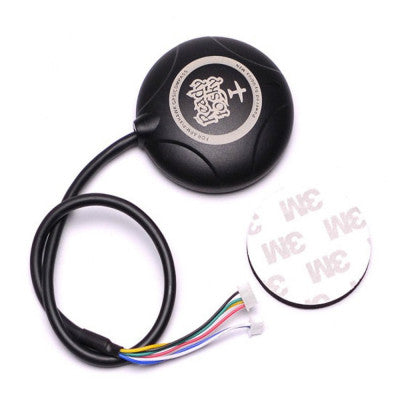

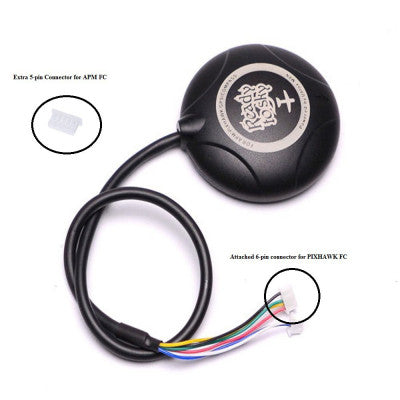

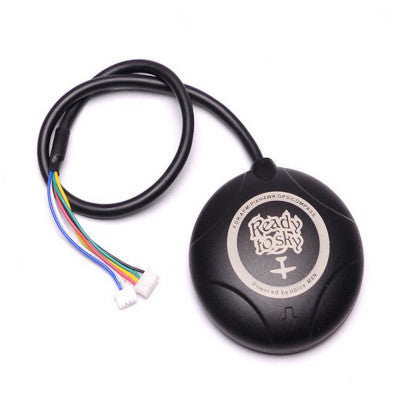

NEO-M8N High Precision GPS Module with Built-in Compass
New generation GPS module with onboard compass, low power consumption, and high precision.
- Model: Ublox NEO-M8N
- Receiver Type: 72-channel Ublox M8 engine
- Main Chip: Ublox NEO-M8N
- Input Supply Voltage (VDC): 0.5 ~ 3.6
- Sensitivity (dBm): Tracking & Navigation: -161 dBm
- Position Accuracy (Meter): 2 - 2.5
- Acceleration (g): <4
- Navigation Update Rate: up to 18 HZ
- Operating Temperature Range (C): -45 to 105
- Tracking Sensitivity (dBm): -161 dBm
- Co-Ordinate System: WGS-84
- Capture Time: 0.1s Average
- Avg Cold Start Time (s): 30
- Warm Start Time (s): 1
- Boot Time: 1s
- Maximum Altitude (m): 18000
- Dimensions (mm): LxWxH 54 x 22 (Dia x W)
- Weight (gm): 23
- Cable Length (cm): 20
Features:
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Onboard Compass
If you need more details or interested in bulk pricing, reach out to our sales team directly - sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
