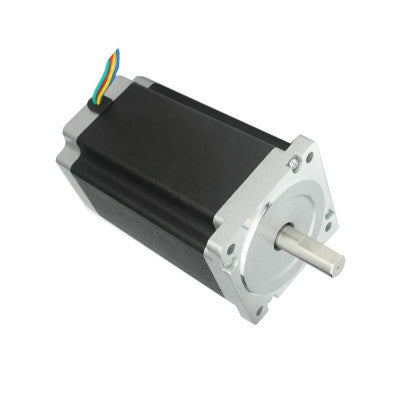

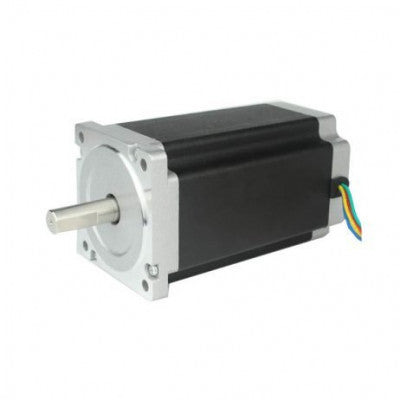

Bipolar NEMA34 122 kg-cm Hybrid Stepper Motor
Perfect choice for large CNC machines requiring high torque.
- Rated Voltage: 4.08V
- Current/phase: 6A
- Holding Torque: 122 kg-cm
- Step Angle: 1.8 degree
- No. of Leads: 4
- Dielectric Strength: 820VAC for 1s 3mA
- Inductance: 9mH
- Ambient Temperature: -20ºC~+50ºC
- Temperature Rise: 80ºC max
- Shaft Radial Play: 0.02 Max. (450g-load)
- Shaft Axial Play: 0.08 Max. (450g-load)
- Max. radial force: 220N (20mm from the flange)
- Max. axial force: 60N
- Step Angle Accuracy: ±5%
- Length (mm): 155
- Weight (g): 5076
Features:
- Supreme finish
- Smooth surface
- Long-lasting life
- Low cost for control achieved
This Bipolar NEMA34 122 kg-cm Hybrid Stepper Motor is the powerhouse for larger machines requiring high torques. It provides excellent response to starting, stopping, and reversing pulses, offering 122 kg-cm of torque at 6A per phase. Ideal for applications needing high torque at high speeds, this motor is designed to withstand the requirements of large CNC machines.
The brushless dc motor operates in an Open Loop Control system, providing stability in high-power operations. With features like ruggedness, simplicity of construction, and low maintenance, this stepper motor is less likely to stall or slip.
Package Includes:
- 1 x 6A 122 kg-cm NEMA 34 Stepper Motor
*Images are for illustration only; actual product may vary.
