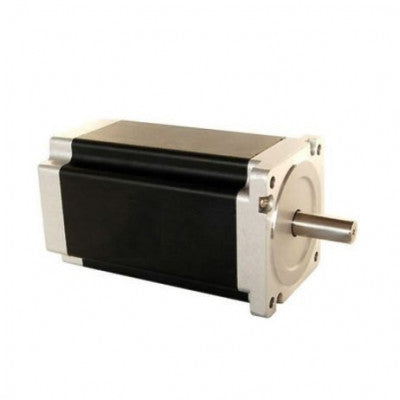

NEMA 23 30.61 kg-cm Hybrid Stepper Motor
A powerhouse for larger machines requiring extra torque
- Step Angle: 1.8 degree
- Holding Torque: 30.61 kg-cm
- Operating Voltage: 3.6 V
- Supply Current (A): 4 A/Phase
- No. of Leads: 4
- Inductance: 3.6 mH/Phase
- Resistance: 1.13 ohms/Phase
- Rotor Inertia: 480 gm-cm2
- Weight (gm): 1690
- Dimensions (mm) LxWxH: 112x57x57
- Detent Torque (kg-cm): 0.68
- Frame Size (mm): 57 x 57
- Inductance Accuracy: ±20%
- Resistance Accuracy: ±10%
- Shaft Diameter (mm): 8mm
- Shaft Length (mm): 20.6
- Step Angle Accuracy: ±5%
- Cable Length: 0.3 m (30 cm)
Features:
- Comparably more powerful than NEMA17 motors
- Input pulse decides the rotation angle of the motor
- High accuracy of around 3 to 5% a step
- Provides good starting, stopping, and reversing
They are the special choice for heavy-duty CNC machines. They surpass NEMA17 Stepper Motors due to their high torque at high speeds. Ideal for CNC Milling, CNC Router applications requiring extra torque. The brushless DC motor offers excellent response to control pulses. The motor shaft is designed for optimal grip and to prevent stall or slip.
Note: The NEMA 23 30.61 kg-cm Hybrid Stepper Motor dimensions and weight may have a 2% error. Resonances can occur due to improper installation. Not recommended for operation at extremely high speeds.
Package includes:
- 1 x NEMA 23 30.61 kg-cm Hybrid Stepper Motor
* Images are for illustration only; actual product may vary.
