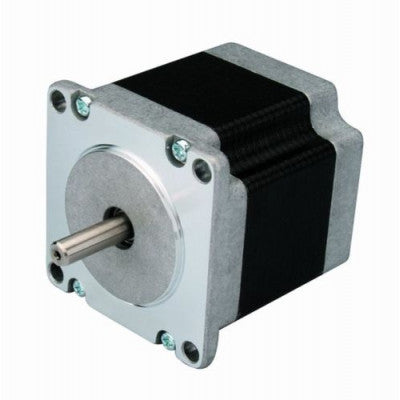

NEMA 23 10.1 kg-cm Hybrid Stepper Motor
A powerhouse stepper motor for larger machines requiring extra torque.
- Step Angle: 1.8 degree
- Holding Torque (Kg-Cm): 10.1
- Operating Voltage (VDC): 2.3
- Supply Current (A): 2.8 A/Phase
- No. of Leads: 4
- Inductance (mH/Phase): 2.2
- Resistance: 0.83 ohms
- Rotor Inertia (gm-cm2): 275
- Weight (gm): 650
- Dimensions (mm) LxWxH: 51x57x57
- Detent Torque (kg-cm): 0.36
- Frame Size (mm): 57 x 57
- Inductance Accuracy: ±20%
- Resistance Accuracy: ±10%
- Shaft Diameter (mm): 6.35
- Shaft Length (mm): 20.6
- Step Angle Accuracy: ±5%
- Shaft Type: Round
Features:
- Comparably more powerful than NEMA17 motors.
- Input pulse determines rotation angle.
- High accuracy of around 3 to 5% per step.
- Good starting, stopping, and reversing capabilities.
They are the special choice for heavy-duty CNC machines, providing excellent response to starting, stopping, and reversing pulses. Equipped for CNC Milling, CNC Router applications requiring extra torque. The brushless DC motor ensures longevity, with precise position control achieved through a simple Open Loop mechanism.
The motor shaft is designed for optimal grip with pulleys and drive gears, minimizing stall or slip risks. Note: Dimensions and weight may have a 2% error. Resonances can occur due to improper installment, and operation at extremely high speeds is not recommended.
Package includes:
- 1 x NEMA23 10.1 kg-cm Hybrid Stepper Motor
* Images are for illustration only; actual product may vary.
