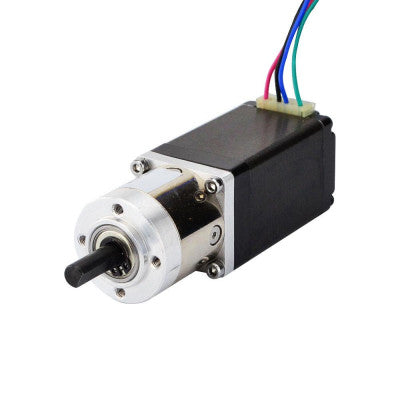

NEMA11 Planetary Geared Stepper Motor
Integrated Planetary gearbox with 0.018° step angle resolution
- Step Angle: 1.8 degree
- Holding Torque (Kg-Cm): 1.2
- Supply Current (A): 0.67
- Winding Type: Bipolar
- No. of Leads: 4
- Inductance (mH/Phase): 7.3
- Resistance: 9.2 ohms
- Rotor Inertia (gm-cm2): 18
- Weight (gm): 272
- Shaft Diameter (mm): 6 x 5
- Shaft Type: D-type
- Shaft Length (mm): 16
- Step Angle Accuracy: ±5%
- Cable Length (cm): 30
Features:
- Good Torque
- Good Speed
- 0.094 deg. Step Angle
- NEMA 11 bipolar 4-wire
This NEMA11 Planetary Geared Stepper Motor is a great solution for applications requiring very low rotation speeds and/or high torque. Please note that while the integrated planetary gearbox offers good performance, it is not a high-precision gearbox, with a promised backlash of <=1 degree.
Package Includes: 1 x NEMA11 1.2 Kg-cm Stepper Motor with Planetary Gearbox
* Images are for illustration only; actual product may vary.
