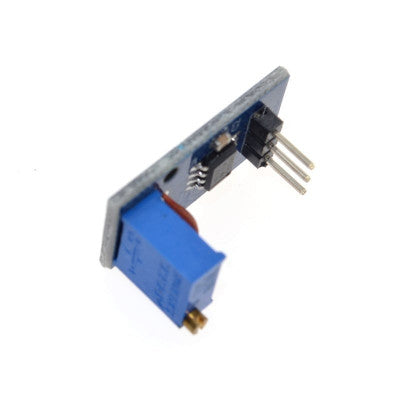

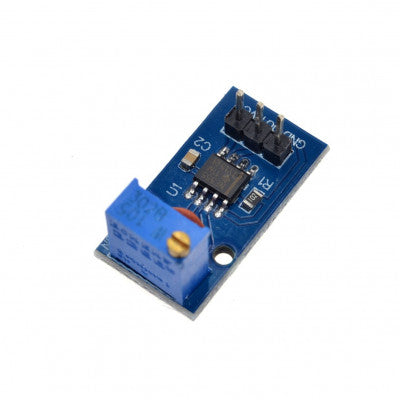

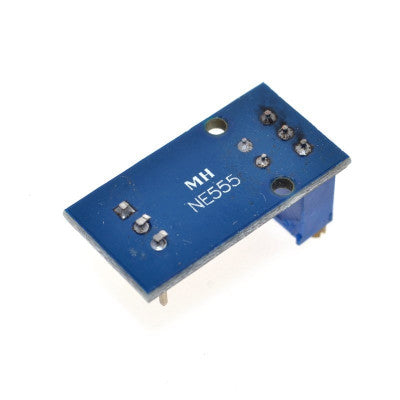

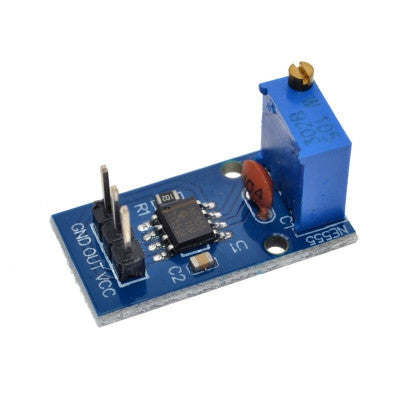

NE555 Pulse Frequency Duty Cycle Adjustable Module
A versatile square wave signal generator with adjustable frequency and duty cycle.
- IC Chip: NE555
- Input Supply Voltage (VDC): 5 to 15
- Output Amplitude: 4.2V V-PP to 11.4V V-PP
- Output Current: 15mA for 5V & 35mA for 12V
- PCB Size (L x W) mm: 25 x 13
- Weight (gm): 3
Features:
- Color: Blue
- Working voltage: 5-12V
- 50% duty cycle at 3.7 Hz & 98% duty cycle at 1.3KHz
- Single channel output with adjustable resistance for frequency control
The NE555 module is a versatile tool for generating square wave signals with adjustable frequency and duty cycle. It is commonly used for stepper motor pulses, testers, and various experimental developments. The NE555 timer IC, known for its stability and ease of use, operates as an astable multivibrator in this module.
The NE555 IC is widely used for timer, pulse generation, and oscillator applications. It can provide time delays, function as an oscillator, and serve as a flip-flop element. This module, featuring a ten-turn frequency adjustment control and power on LED, is a reliable choice for generating square wave signals.
With a frequency range from 4Hz to 1.3KHz, this module offers flexibility in signal generation for different applications. Whether you need adjustable pulses for MCU use or pulse control in related circuits, the NE555 Pulse Frequency Duty Cycle Adjustable Module is a valuable addition to your electronics toolkit.
* Images are for illustration only; actual product may vary.
