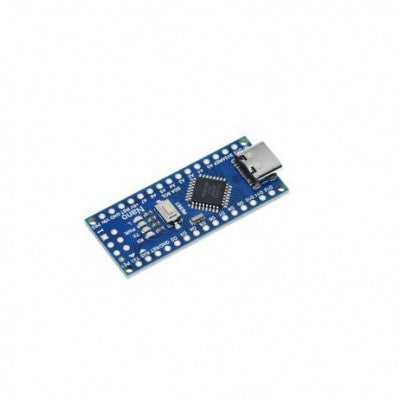

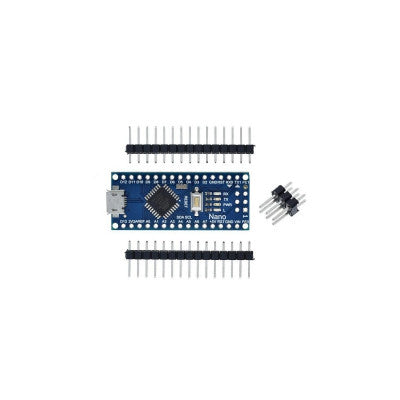

Arduino Nano V3.0 Micro-controller
A small, complete micro-controller board based on the ATmega328 MCU.
- Model: Arduino NANO
- Memory: 32 KB of Which 2 KB Used By Bootloader
- Operating Voltage: 5V
- Max Supply Voltage: 6V - 20V
- Processor: ATmega328
- USB Connector: 2.0 Ports Mini USB
- Digital I/O Pins: 22
- Cable Type: TYPE C
Features:
- CH340G USB bus converter chip replaces FT232RL
- Operating Voltage (logic level): 5V
- 8 analog inputs ports: A0-A7
- 14 Digital input/output ports: TX, RX, D2-D13
This Arduino-compatible Nano V3.0 micro-controller is a small, complete, micro-controller board based on the ATmega328 MCU. It has more or less the same functionality as the Arduino Duemilanove, but in a smaller package. It lacks only a DC power jack and uses the more compact Mini USB (Mini-B) connector instead of a standard USB connector. It is compatible with Arduino programs and the Arduino IDE. This version of the Nano uses the CH340G USB interface controller. It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

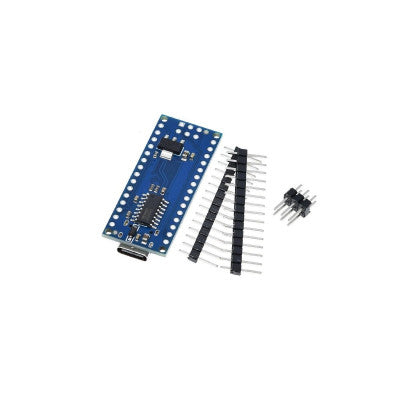

Package Includes:
- 1 X Nano V3.0 16MHz CH340
- 1 X Type-C Cable 30cm
* Images are for illustration only; actual product may vary.
