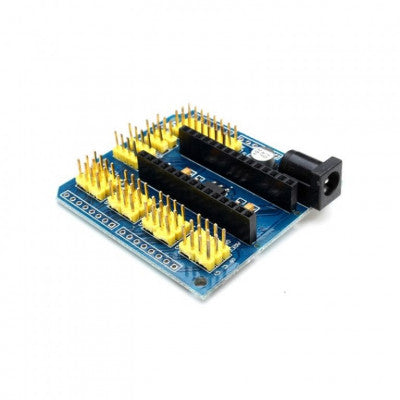

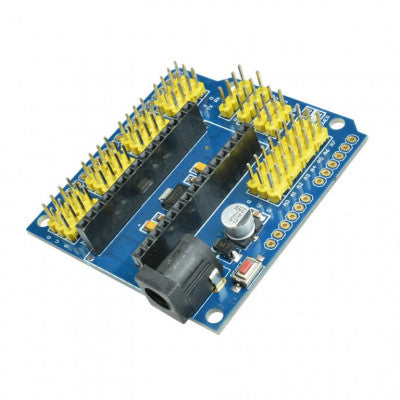

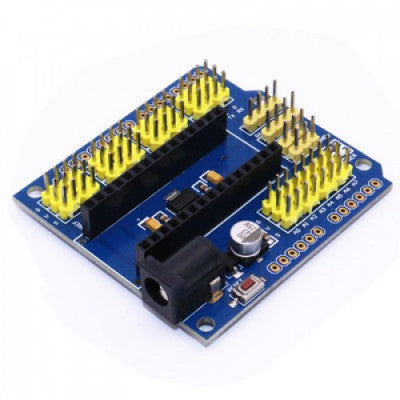

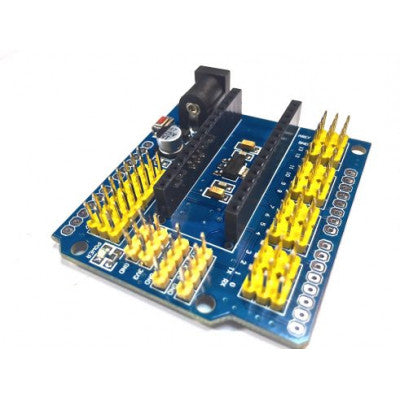

Nano 328P Expansion Adapter Breakout Board IO Shield
A breakout board for Arduino Nano with various power input options
- Input Voltage: 3.3 ~ 5V
- No. of Analog Pins: 8
- No. of PWM Pin: 6
- Length (mm): 58
- Width (mm): 54
- Height (mm): 12
- Weight (gm): 15
Top Features:
- Compatible with Arduino NANO
- All digital and analog pins breakout
- Compact size
- External power supply current support
The Nano 328P Expansion Adapter Breakout Board IO Shield serves as a breakout board for the Arduino Nano microcontroller. It offers various power input options and shares the same footprint as the Arduino Duemilanove. Each pinout includes 5V and GND pins for easy sensor or servo connections. The unit comes fully assembled and is compatible with both Arduino Nano v2.x and v3.x.
The board features 14 I/O Pins (servo type with GND, power, and signal), 8 analog Pins with power output and GND, 6 PWM Pins, 1 Servo power input, 5 I2C expansion Pins, 1 AREF output, and 1 3.3V output. It is specifically designed to simplify the connection between Arduino Nano and other devices, expanding the Arduino Nano controller's capabilities in a straightforward manner. It is an ideal companion for Nano breadboards.
You can use this module with Arduino Nano for seamless integration and experimentation. Leads all pins out, making it convenient for wiring and conducting experiments.
Package Includes:
- 1 x Nano 328P Expansion Adapter Breakout Board IO Shield
Images are for illustration only; actual product may vary.
