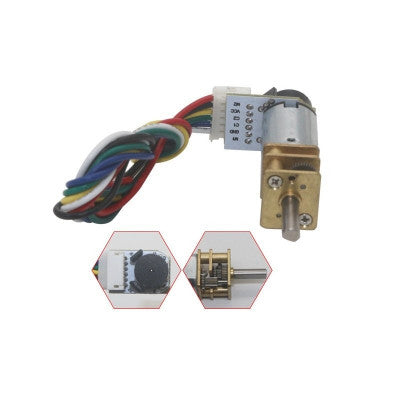

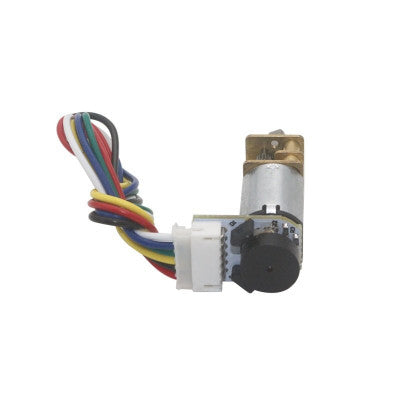

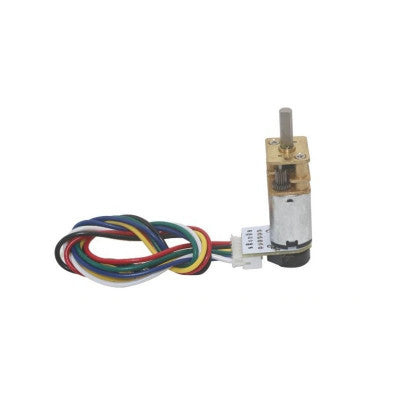

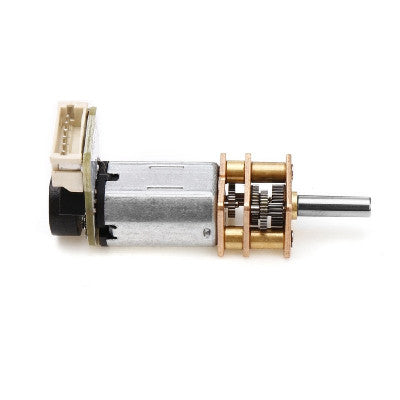

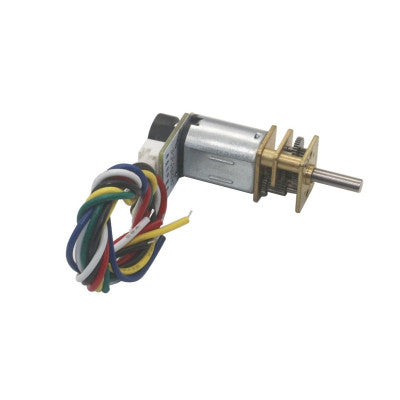

N20 6V 70RPM Micro Metal Gear Motor With Encoder
Compact and versatile motor with encoder for robotics projects.
- Model No: GA12 N20
- Rated Operating Voltage (VDC): 6
- No Load Current (mA): 25
- No load Speed (RPM): 70
- Rated Speed (RPM): 60
- Rated Current (mA): 120
- Rated Torque(kg-cm): 0.65
- Stall Current (A): 1
- Stall Torque(Kg-Cm): 4
- Gear Ratio: 200 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Model: GA12 N20
- DC Mini Metal Gear Motor
- Lightweight and high torque
- Low RPM for precise control
These N20 6V 70RPM Micro Metal Gear Motors with Encoder are designed for optimal performance at 6V, with a voltage range of 3-6V. The motors come in various gear ratios from 5:1 to 1000:1, allowing flexibility in design. With dimensions that remain consistent across different gear ratios (except for 1000:1), these motors offer easy interchangeability.
The motor features excellent stall characteristics, making it suitable for climbing hills effortlessly. Additionally, the motor's output shaft allows for easy mounting of wheels. The wiring instructions include color codes for power, signal feedback, and motor rotation control.
Package Includes:
- 1 x N20 6V 70RPM Micro Metal Gear Motor With Encoder
- 1 x Connector (14 cm)
*Images are for illustration only; actual product may vary.
