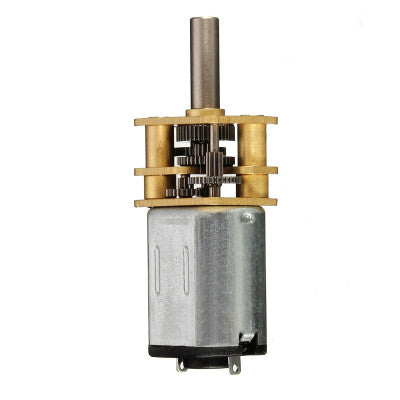

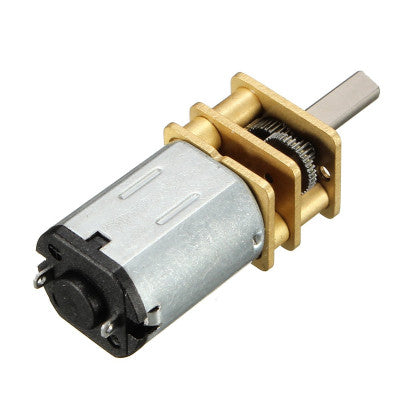

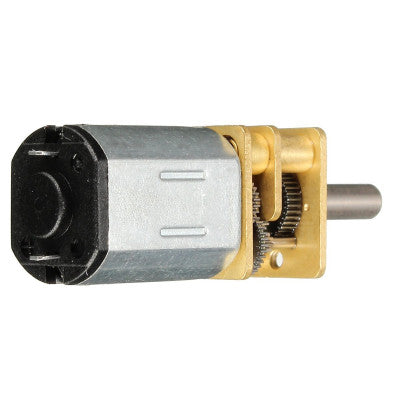

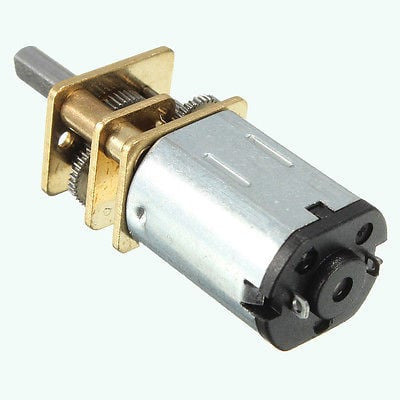

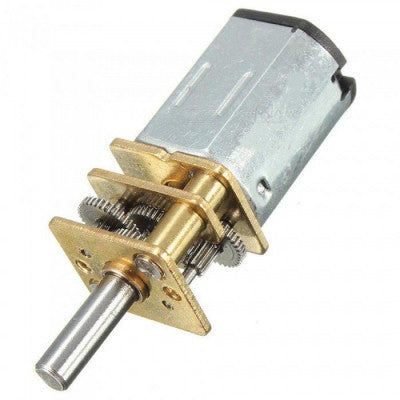

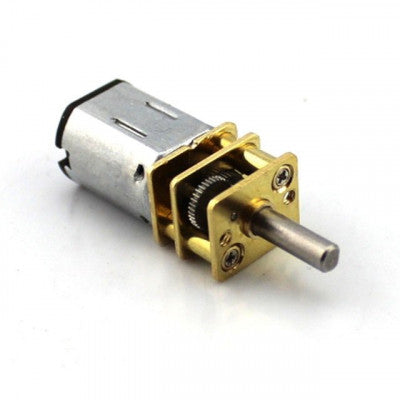

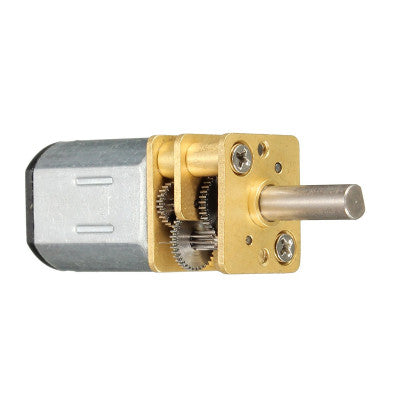

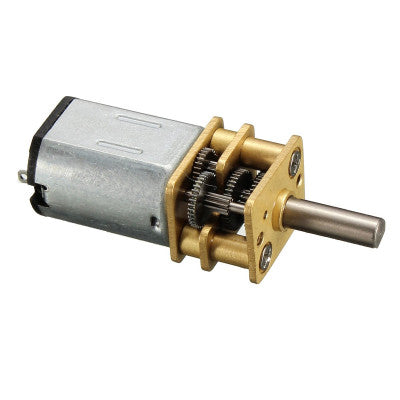

N20 6V 60 Rpm Micro Metal Gear Motor
A durable and high-torque motor for various applications.
- Model No: N20-6V-60
- No Load Current (mA): 0.04 A
- Stall Current (A): 0.67
- Rated Torque(kg-cm): 0.65
- Stall Torque(Kg-Cm): 2.6
- Motor Body Size (Diameter) (mm): 12
- Operating Voltage (VDC): 3 ~ 6
- Rated Operating Voltage (VDC): 6
- No load Speed (RPM): 60
- Rated Speed (RPM): 60
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 12
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Features:
- Lightweight, high torque, and low RPM
- Great for replacing damaged DC geared motors
- Can be used in boats, cars, electric bicycles, fans, and home appliances
- Ideal for making robots
This N20 Micro Gear 6V 60 RPM DC Motor (High Torque) is equipped with a gearbox assembly to increase motor torque. It has a small size, making it suitable for small-scale applications where space is limited. Connect this motor to wheels for high-load transportation.
The motor has a cross-section of 1012mm, and the D-shaped gearbox output shaft is 9mm long and 3mm in diameter. It is durable with all-metal gears, ensuring longevity and reliability.
Package Includes: 1 x N20 6V 60 RPM Micro Metal Gear Motor
Images are for illustration only; actual product may vary.
