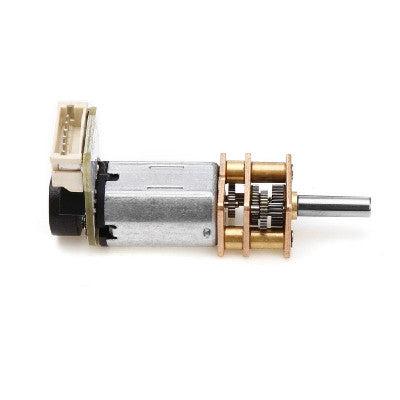

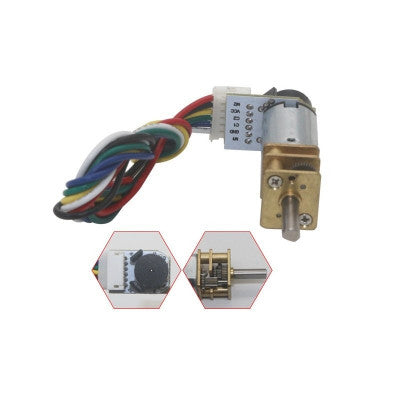

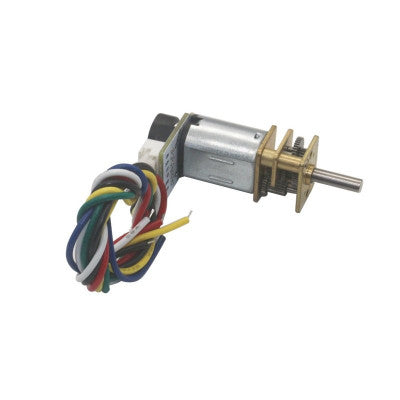

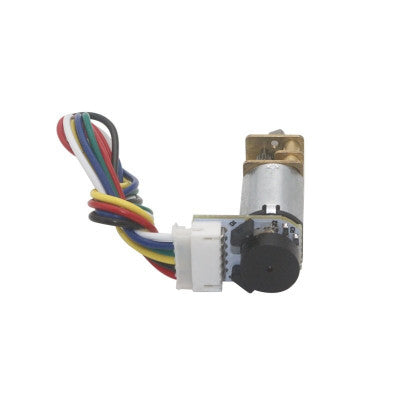

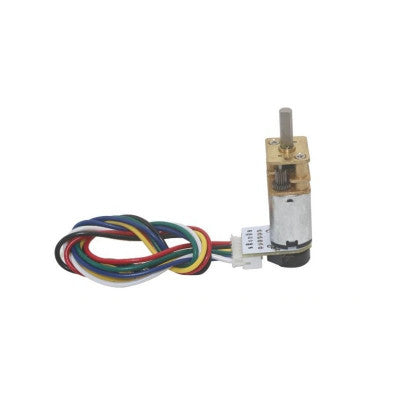

N20 6V 50RPM Micro Metal Gear Motor With Encoder
Compact and efficient motor with encoder for robotics projects.
- Model: GA12 N20
- Rated Operating Voltage (VDC): 6
- No Load Current (mA): 20 mA
- No Load Speed (RPM): 50
- Rated Speed (RPM): 40
- Rated Current (mA): 120
- Rated Torque(kg-cm): 1.5
- Stall Current (A): 1
- Stall Torque(Kg-Cm): 10
- Gear Ratio: 298 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy wheel mounting on output shaft
These N20 6V 50RPM Micro Metal Gear Motors with Encoder are designed for optimal performance at 6V, with a voltage range of 3-6V. The gear motors come in various gear ratios from 5:1 to 1000:1, allowing flexibility in design. The motors exhibit excellent stall characteristics, making them suitable for tasks like climbing hills.
The wiring instructions are straightforward: Red for motor power, Black for encoded power supply, Yellow and Green for signal feedback, Blue for encoded power ground, and White for motor power exchange. The package includes 1 x N20 6V 50RPM Micro Metal Gear Motor with Encoder and 1 x 14 cm connector for easy setup.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
