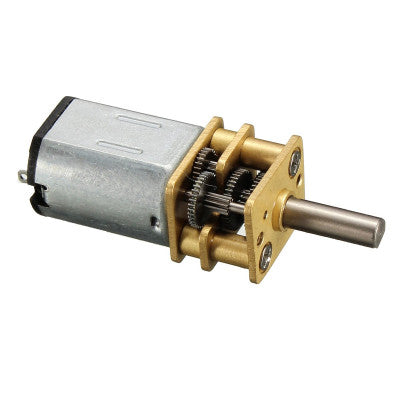

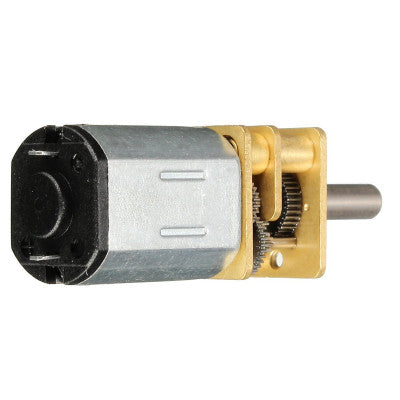

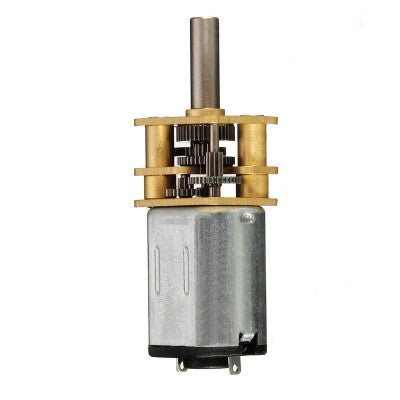

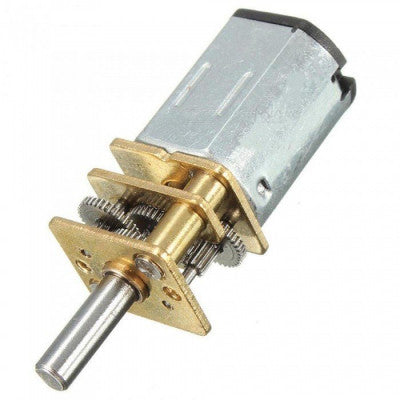

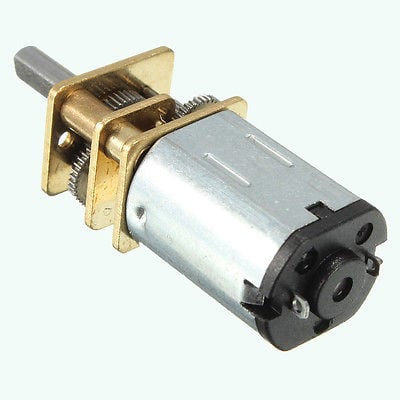

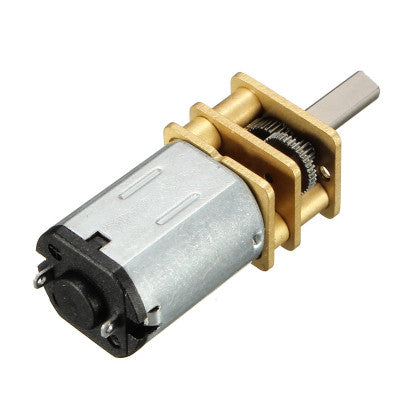

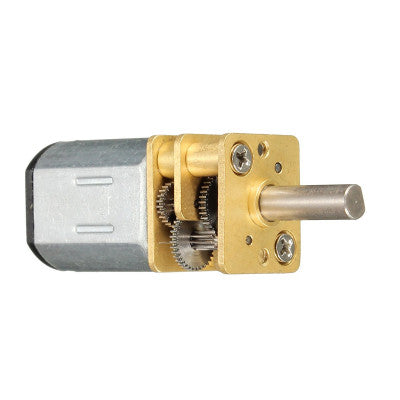

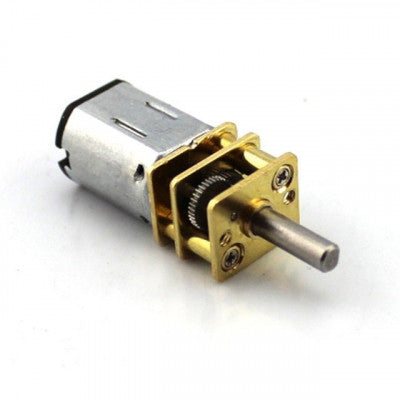

N20 6V 400 Rpm Micro Metal Gear Motor
Lightweight, high torque motor with all metal gear for durability.
- Model No: N20-6V-400
- No Load Current (mA): 0.04 A
- Stall Current (A): 0.67
- Stall Torque(Kg-Cm): 0.65
- Rated Torque(kg-cm): 0.18
- Motor Body Size (Diameter) (mm): 12
- Operating Voltage (VDC): 3 ~ 6
- Rated Operating Voltage (VDC): 6
- No load Speed (RPM): 400
- Rated Speed (RPM): 400
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 12
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Features:
- DC Mini Metal Gear Motor, ideal for robots
- Lightweight, high torque, low RPM
- Durable with excellent stall characteristics
- Can climb hills easily
This N20 Micro Gear 6V 400 RPM DC Motor (High Torque) is a great replacement for rusty or damaged DC geared speed reduce motors in various applications like boats, cars, electric bicycles, fans, and home appliances. It is equipped with a gearbox assembly to increase torque and has a small size suitable for small-scale applications.
One can easily mount a wheel on the motor's output shaft to drive high loads from one place to another.
Package Includes:
- 1 x N20 6V 400 Rpm Micro Metal Gear Motor
* Images are for illustration only; actual product may vary.
