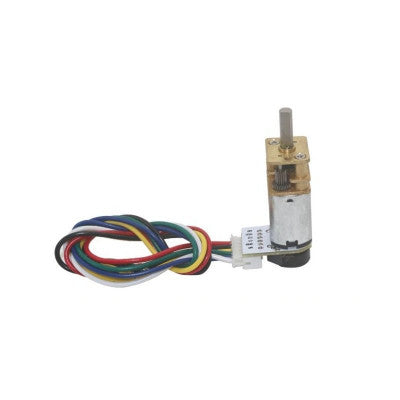

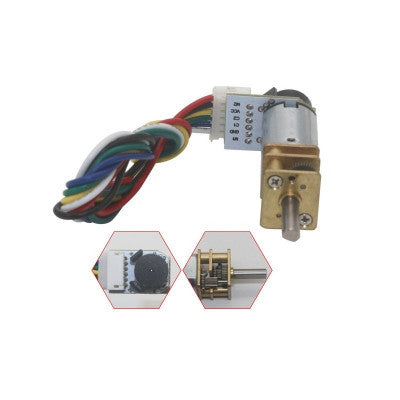

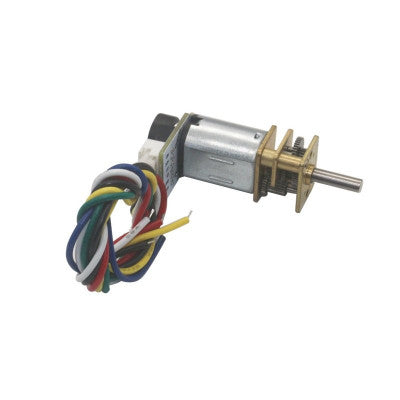

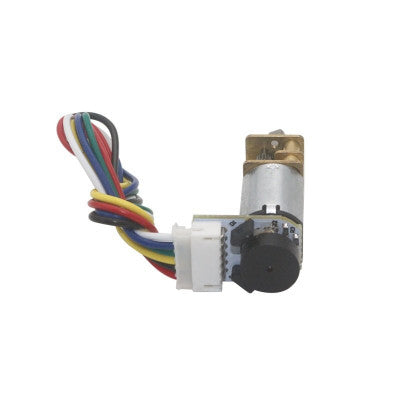

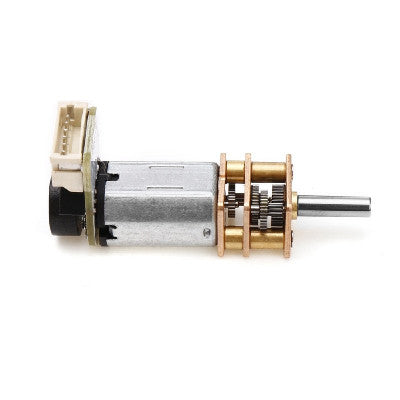

N20 6V 200RPM Micro Metal Gear Motor With Encoder
Compact and versatile motor with encoder for robotics projects.
- Model: GA12 N20
- Rated Operating Voltage (VDC): 6
- No Load Current (mA): 30 mA
- No Load Speed (RPM): 200
- Rated Speed (RPM): 160
- Rated Current (mA): 60
- Rated Torque (kg-cm): 0.3
- Stall Current (A): 0.23
- Stall Torque (Kg-Cm): 1.5
- Gear Ratio: 50 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy wheel mounting on output shaft
These N20 6V 200RPM Micro Metal Gear Motors with Encoder are designed for use at 6V but can operate in the 3-6V range. They come in various gear ratios from 5:1 to 1000:1, with consistent physical dimensions across versions for easy swapping. The motor's stall characteristics make it suitable for climbing hills effortlessly.
How to wire:
Red: Motor Power (Reversible for positive/negative rotation)
Black: Encoded Power Supply (VCC) Positive (3.3-5V)
Yellow/Green: Signal feedback (2 signals for motor turns)
Blue: Encoded Power (GND)
White: Motor Power (Reversible for positive/negative rotation)
Package Includes:
1 x N20 6V 200RPM Micro Metal Gear Motor With Encoder
1 x Connector (14 cm)
*Images are for illustration only; actual product may vary.
