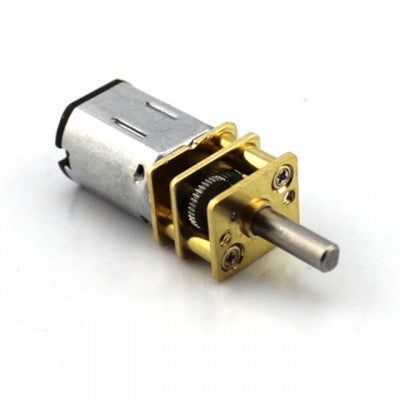

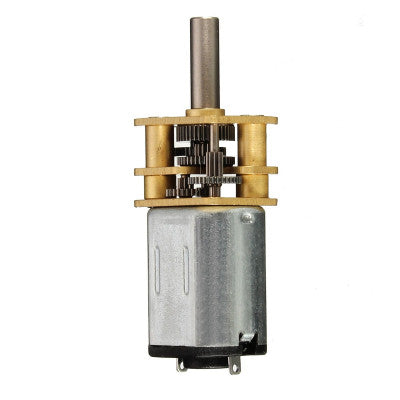

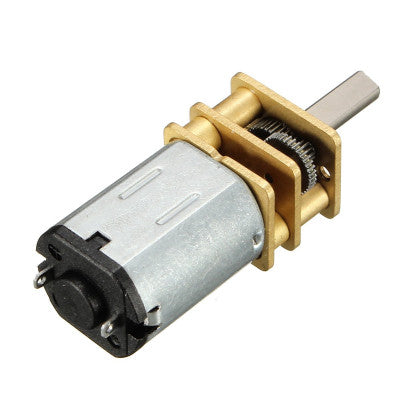

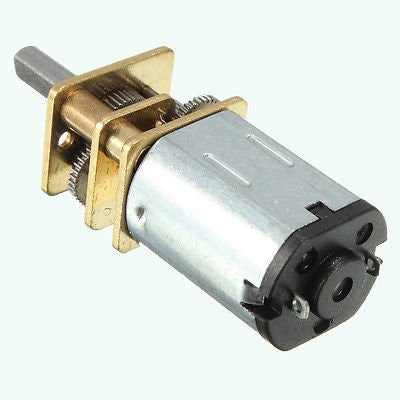

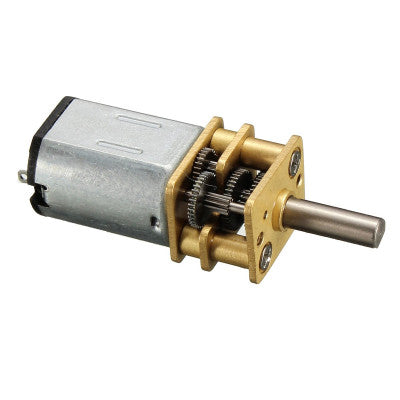

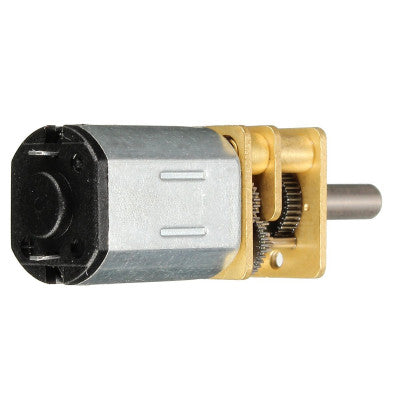

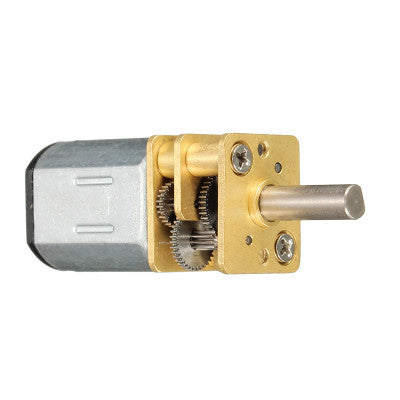

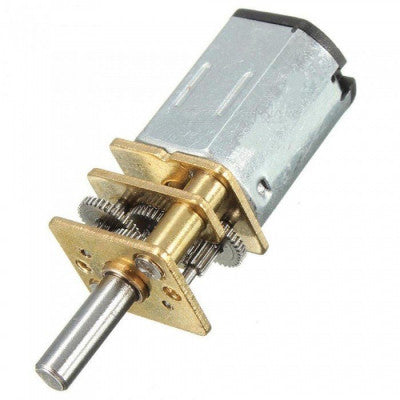

N20 6V 200 Rpm Micro Metal Gear Motor
Lightweight, high torque, low RPM motor with all-metal gears.
- Model No: N20-6V-200
- Operating Voltage (VDC): 3 ~ 6
- No Load Current (mA): 0.04 A
- Stall Current (A): 0.67
- Rated Torque(kg-cm): 0.4
- Stall Torque(Kg-Cm): 1.2
- Motor Body Size (Diameter) (mm): 12
- Rated Operating Voltage (VDC): 6
- No load Speed (RPM): 200
- Rated Speed (RPM): 200
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 12
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Features:
- DC Mini Metal Gear Motor, ideal for robots
- Lightweight, high torque, low RPM
- Durable with excellent stall characteristics
- Can climb hills easily
This N20 Micro Gear 6V 200 RPM DC Motor is a great replacement for rusty or damaged DC geared speed reduce motors. It is widely used in boats, cars, electric bicycles, fans, and home appliances. The motor has a small size, making it suitable for small-scale applications with complex spaces. Connect it to wheels to drive them while carrying high loads.
The motor has a cross-section of 1012mm, and the D-shaped gearbox output shaft is 9mm long and 3mm in diameter.
Package Includes: 1 x N20 6V 200 RPM Micro Metal Gear Motor
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
