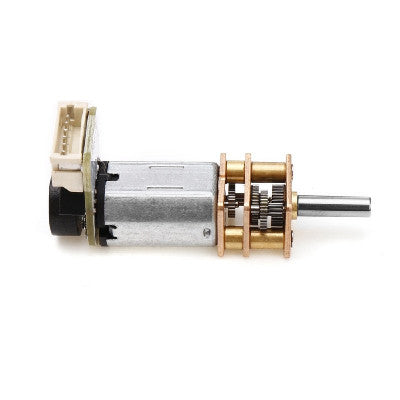

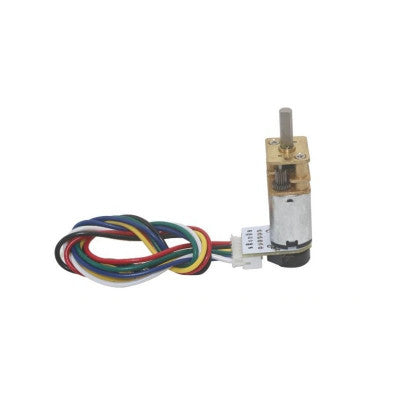

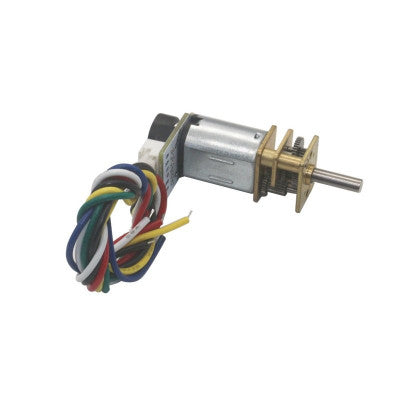

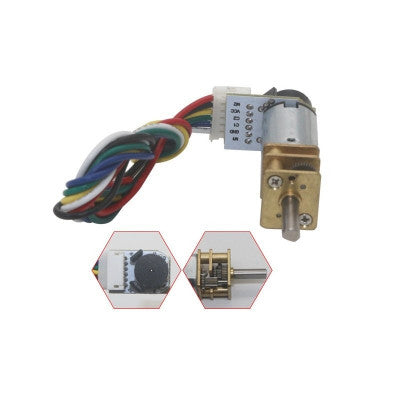

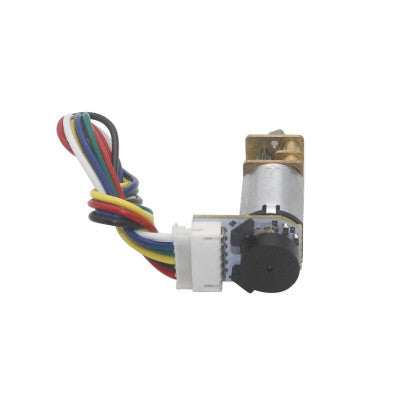

N20 6V 150RPM Micro Metal Gear Motor With Encoder
Compact and efficient motor with encoder for robotics projects.
- Model No: GA12 N20
- Rated Operating Voltage (VDC): 6
- No Load Current (mA): 30 mA
- No load Speed (RPM): 150
- Rated Speed (RPM): 120
- Rated Current (mA): 50
- Rated Torque(kg-cm): 0.35
- Stall Current (A): 0.25
- Stall Torque(Kg-Cm): 2.4
- Gear Ratio: 100 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy to mount wheels
These N20 6V 150RPM Micro Metal Gear Motors with Encoder are designed for use at 6V but can operate in the 3-6V range. They come in various gear ratios from 5:1 to 1000:1, with most having the same physical dimensions for easy swapping. The motor features excellent stall characteristics, making it suitable for climbing hills effortlessly. The package includes 1 x N20 6V 150RPM Micro Metal Gear Motor with Encoder and 1 x 14 cm connector.
The motor wiring is as follows: Red for motor power, Black for encoded power supply (VCC), Yellow and Green for signal feedback, Blue for encoded power (GND), and White for motor power.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
